Engine displacement
125
2
Model
FLY
3
Year
2010
4
Trim
Fly 4T E3
5
Parts Catalog
Carburetor's components
6
Parts Diagram
Parts Catalog
Rear brake - Brake jaw
by
Head unit - Valve
Carburetor's components
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Gas valve cover
842514
$20,60 Unit Price incl. VAT
2
Gas valve spring
CM140903
$14,18 Unit Price incl. VAT
3
Tapered pin cap
842517
Not Available
4
Conical pin NJHA
CM140210
$9,50 Unit Price incl. VAT
5
Diaphragm
CM140302
$130,56 Unit Price incl. VAT
6
Cap
828844
$16,84 Unit Price incl. VAT
7
Complete automatic starter
CM142905
Not Available
8
Plate
828843
$3,03 Unit Price incl. VAT
9
Starter device
842530
$19,58 Unit Price incl. VAT
10
Main jet 82
CM129914
$16,59 Unit Price incl. VAT
11
Petrol needle
828831
Not Available
12
Complete reservoir
CM156709
$87,60 Unit Price incl. VAT
13
Float kit
842522
$24,62 Unit Price incl. VAT
14
Float chamber kit
842523
$10,95 Unit Price incl. VAT
15
Idle jet
CM140105
$11,77 Unit Price incl. VAT
16
Pipes kit
842521
$7,31 Unit Price incl. VAT
17
Adj.min.eng.speed screw
CM149404
$5,12 Unit Price incl. VAT
18
Adj.min.eng.speed air screw
CM146301
$7,64 Unit Price incl. VAT
19
Pad
843962
$5,53 Unit Price incl. VAT

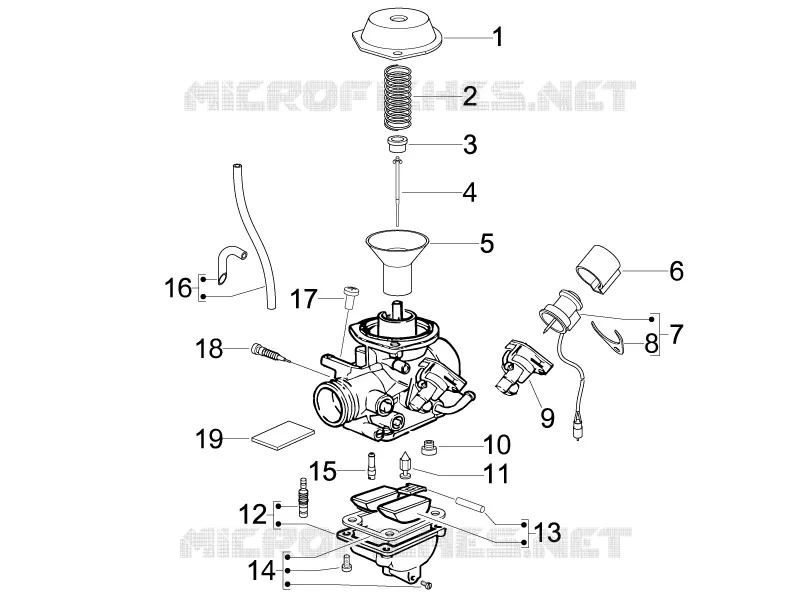

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
