Swinging arm for GILERA PIAGGIO VESPA Fly 4T E3 from 2008

Swinging arm

1

Chassis side swinging arm

597495

Not Available

2

Roller cage

597374

Not Available

3

Spacer

CM067802

$8,01 Unit Price incl. VAT

4

Hex screw M10x245

563977

$3,70 Unit Price incl. VAT

5

Self locking nut M10

002440

$0,34 Unit Price incl. VAT

6

Complete swinging arm on engine side

601744

$60,75 Unit Price incl. VAT

7

Roller cage

597374

Not Available

8

Spacer L=183 mm

CM067801

$6,51 Unit Price incl. VAT

9

Hex screw M10x202

271807

$4,41 Unit Price incl. VAT

10

Circlip

006416

$0,08 Unit Price incl. VAT

11

Bracket

601620

$63,18 Unit Price incl. VAT

12

Silent-block

272750

$12,52 Unit Price incl. VAT

13

Bush

273460

$0,75 Unit Price incl. VAT

14

screw

263381

$4,62 Unit Price incl. VAT

15

Nut

272176

$3,70 Unit Price incl. VAT

16

Spring

564813

$5,38 Unit Price incl. VAT

17

Pin

600309

$3,65 Unit Price incl. VAT

18

Hex socket screw M6x20

709674

$0,17 Unit Price incl. VAT

19

Spring washer 6,4x11x0,5

006966

$0,08 Unit Price incl. VAT

20

Flat washer 16x6,5x1,5

013880

$0,08 Unit Price incl. VAT

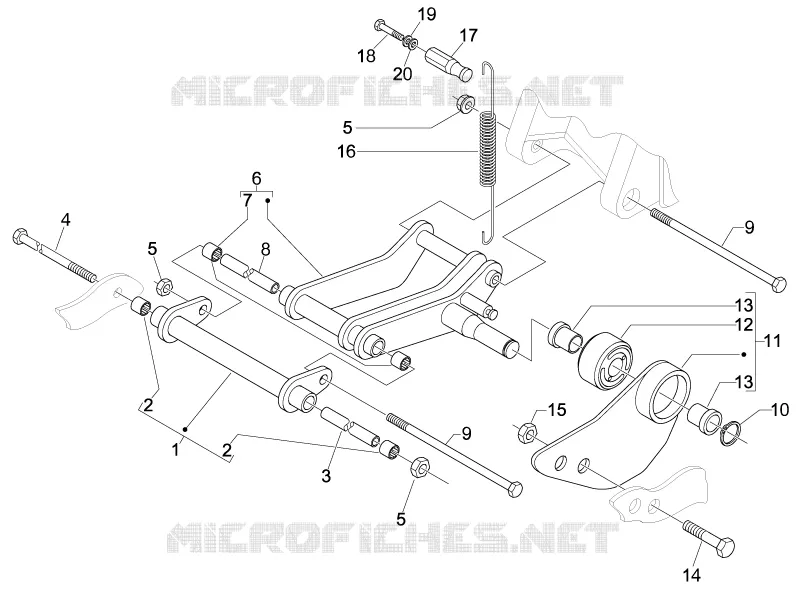

Find the detailed Swinging arm GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
