Engine displacement
500
2
Model
X10
3
Year
2013
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Flywheel magneto
6

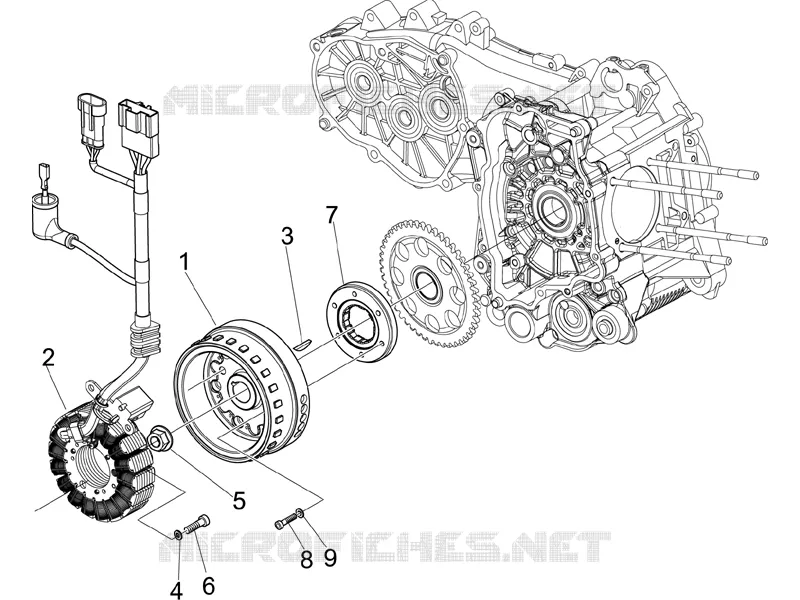

Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Rear wheel
Flywheel magneto
1
2
3
4
5
6
7
8
9
1
Rotor, assy.
58196R
$52,65 Unit Price incl. VAT
2
Stator
58274R
$97,20 Unit Price incl. VAT
3
Transmission key
000097
$5,21 Unit Price incl. VAT
4
Flat washer 14.1x30x3
825725
$1,77 Unit Price incl. VAT
5
Nut M14x1,5
827116
$1,60 Unit Price incl. VAT
6
screw
597564
$0,50 Unit Price incl. VAT
7
Complete freewheel
8494905
$51,70 Unit Price incl. VAT
8
Hex socket screw M6x25
877288
$0,34 Unit Price incl. VAT
9
Break washer
479515
$0,08 Unit Price incl. VAT
