1
Engine displacement
350
2
Model
X10
3
Year
2012
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Head unit - Valve
6
Parts Diagram
Parts Catalog
Driving pulley
by
Frame/bodywork

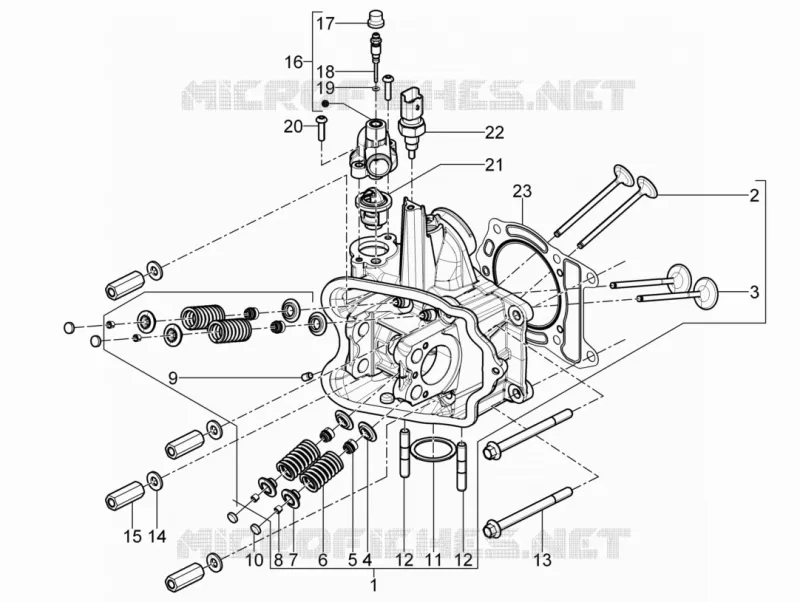

Head unit - Valve
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
1
Complete cylinder head
B0134114
Not Available
2
Exaust valve
880602
$26,14 Unit Price incl. VAT
3
Valve, in
880601
$7,31 Unit Price incl. VAT
4
Lower cap
878859
$0,84 Unit Price incl. VAT
5
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
6
Valve spring
878860
$4,82 Unit Price incl. VAT
7
Upper cap
879813
$6,38 Unit Price incl. VAT
8
Valve half-cone
285846
$2,94 Unit Price incl. VAT
9
Plug M6x10
842360
$0,75 Unit Price incl. VAT
10
Calibrated pad 3,40 mm
CM163221
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,00 mm
CM163213
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,75 mm
CM163208
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,85 mm
CM163210
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,90 mm
CM163211
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,65 mm
CM163206
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,05 mm
CM163214
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,45 mm
CM163202
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,30 mm
CM163219
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,25 mm
CM163218
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,55 mm
CM163204
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,35 mm
CM163220
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,70 mm
CM163207
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,95 mm
CM163212
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,50 mm
CM163203
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,60 mm
CM163205
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,80 mm
CM163209
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,20 mm
CM163217
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,10 mm
CM163215
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,40 mm
CM163201
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,15 mm
CM163216
$3,11 Unit Price incl. VAT
11
Exhaust pipe gasket
879662
$4,82 Unit Price incl. VAT
12
Exhaust pipe stud bolt
B017636
Not Available
13
Screw w/ flange
B013593
$3,65 Unit Price incl. VAT
14
Flat washer
B014079
$3,65 Unit Price incl. VAT
15
High hexagonal nut
B013371
$3,65 Unit Price incl. VAT
16
Thermostat cover
B018147
$38,43 Unit Price incl. VAT
16
Thermostat cover
B013477
Not Available
17
Bleed valve cap
063435
$0,34 Unit Price incl. VAT
18
Bleed screw
845605
$3,21 Unit Price incl. VAT
19
Gasket
297027
$1,10 Unit Price incl. VAT
20
Hex socket screw M5x20
845753
Not Available
21
Thermostat
82831R
Not Available
22
Temperature gauge
640485
Not Available
23
Cylinder gasket/head
B015183
$7,94 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
