Engine displacement
125
2
Model
X10
3
Year
2013
4
Trim
X10 4T 4V I.E. E3
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Handlebars coverages
Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
21
22
23
1
Handlebar with U.P.
6741055
$106,71 Unit Price incl. VAT
2
Left brake hydraulic pump
CM086403
Not Available
2
Left brake hydraulic pump
CM086405
Not Available
2
Left brake hydraulic pump
CM086401
$82,56 Unit Price incl. VAT
3
Brake lever
668417
$26,06 Unit Price incl. VAT
4
Bracket
668387
$58,69 Unit Price incl. VAT
5
LH Hose
667957
Not Available
6
Grip, l.h.
CM084201
$7,02 Unit Price incl. VAT
7
Complete right throttle control grip
CM088203
Not Available
8
Grip, r.h.
CM084202
$7,02 Unit Price incl. VAT
9
Throttle opening transmission
667800
Not Available
10
Throttle closing transmission
667801
$23,67 Unit Price incl. VAT
11
Electric control device DX
643152
Not Available
12
Right brake hydraulic pump
CM086406
Not Available
12
Right brake hydraulic pump
CM086402
$75,61 Unit Price incl. VAT
12
Right brake hydraulic pump
CM086404
Not Available
13
Brake lever
668417
$26,06 Unit Price incl. VAT
14
Bracket
668535
$58,69 Unit Price incl. VAT
15
Hex socket screw
655554
$3,70 Unit Price incl. VAT
16
Nut M10
015330
$0,25 Unit Price incl. VAT
17
Flat washer
178790
$0,51 Unit Price incl. VAT
18
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
19
Handlebar terminal
673339
$2,66 Unit Price incl. VAT
20
screw M6x55
271434
Not Available
21
Fascetta con p.i.
666620
$3,00 Unit Price incl. VAT
22
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
23
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT

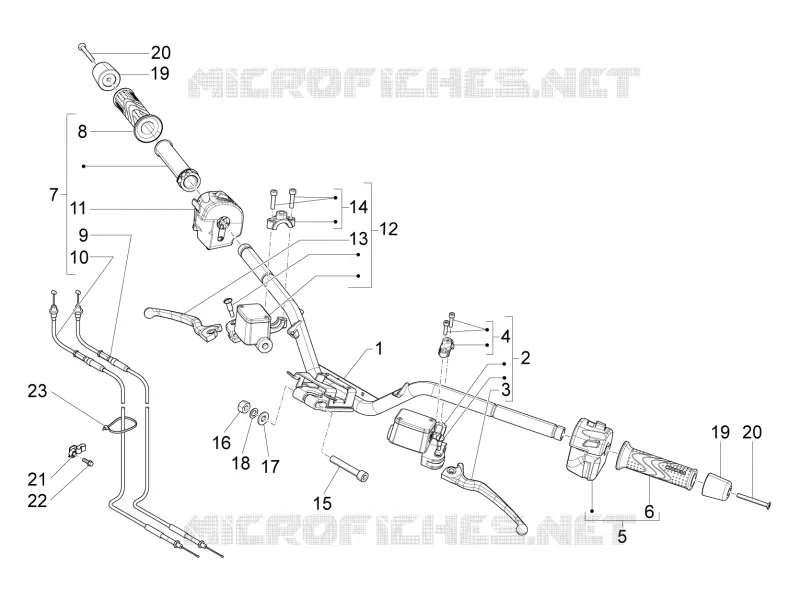

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
