1
Engine displacement
50
2
Model
TYPHOON
3
Year
2013
4
Trim
Typhoon 2T Euro 3
5
Parts Catalog

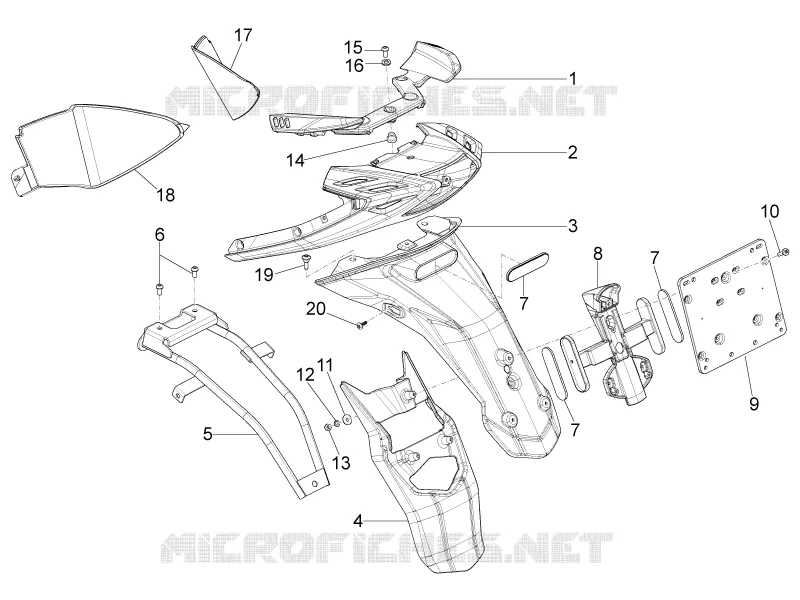

Rear cover - Splash guard
6
Parts Diagram
Parts Catalog
Main cable harness
by
Stater - Electric starter
Rear cover - Splash guard
1
2
3
4
5
6
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Passenger handle
6574720090
$114,49 Unit Price incl. VAT
2
Fairings rear closing
65746900XH1
$33,54 Unit Price incl. VAT
3
Rear splash guard
65747300XH1
$16,22 Unit Price incl. VAT
4
Splash guard extension
664310
$9,75 Unit Price incl. VAT
5
Licence plate support sub-frame
664434
$43,36 Unit Price incl. VAT
6
Hex socket screw
582428
$0,34 Unit Price incl. VAT
7
Rear retroreflector
58233R
Not Available
8
Number plate holder support
642018
$12,63 Unit Price incl. VAT
9
Number plate holder
582691
$4,96 Unit Price incl. VAT
10
Screw M4x12
015996
$0,08 Unit Price incl. VAT
11
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
12
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
13
Nut M4
020104
$1,26 Unit Price incl. VAT
14
Bush
856459
$5,27 Unit Price incl. VAT
15
Hex socket screw
564606
$0,28 Unit Price incl. VAT
16
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
17
RH rear wall
672186
$5,45 Unit Price incl. VAT
18
LH rear wall
672185
$5,45 Unit Price incl. VAT
19
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
20
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
