1
Engine displacement
50
2
Model
TYPHOON
3
Year
2011
4
Trim
Typhoon 2T Euro 3
5
Parts Catalog

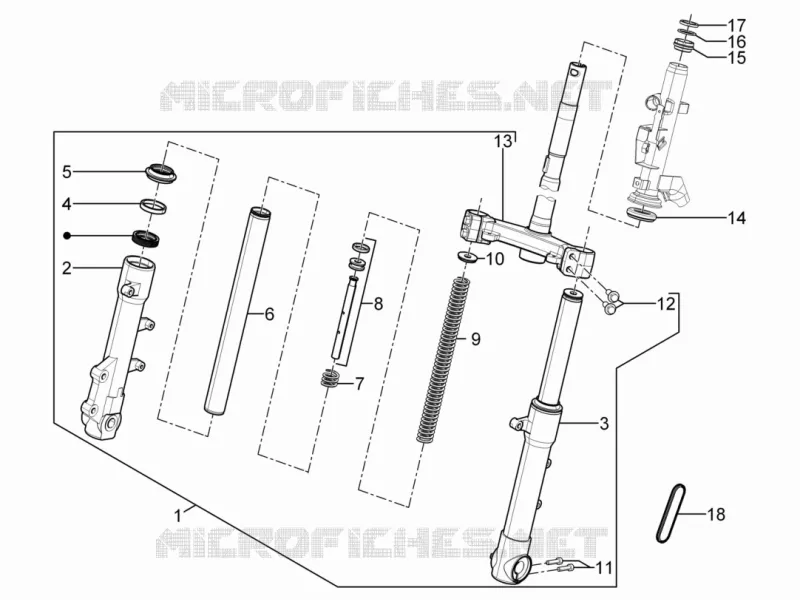

Fork/steering tube - Steering bearing unit
6
Parts Diagram
Parts Catalog
Air filter
by
Stand/s
Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Stirrup assy.
666879
Not Available
2
RH sleeve
666261
$87,50 Unit Price incl. VAT
3
LH sleeve
666262
$87,50 Unit Price incl. VAT
4
Fork oil seal
600485
$4,95 Unit Price incl. VAT
5
Dust cover
600490
$8,78 Unit Price incl. VAT
6
Fork stanchion
858319
$48,66 Unit Price incl. VAT
7
Secondary Spring
858322
$4,89 Unit Price incl. VAT
8
Fork piston
858321
$11,85 Unit Price incl. VAT
9
Fork spring
858320
$8,78 Unit Price incl. VAT
10
Cover
600495
$1,07 Unit Price incl. VAT
11
screw
601401
$3,70 Unit Price incl. VAT
12
Screw w/ flange
600482
$3,70 Unit Price incl. VAT
13
Steering column tube
858318
$369,90 Unit Price incl. VAT
14
Lower steering bearing
650075
Not Available
15
Upper thrust ring
650693
Not Available
16
Washer of the steering
0037514
$1,51 Unit Price incl. VAT
17
Steering tube ring nut
0111094
$2,60 Unit Price incl. VAT
18
Lateral reflector
664045
$11,22 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
