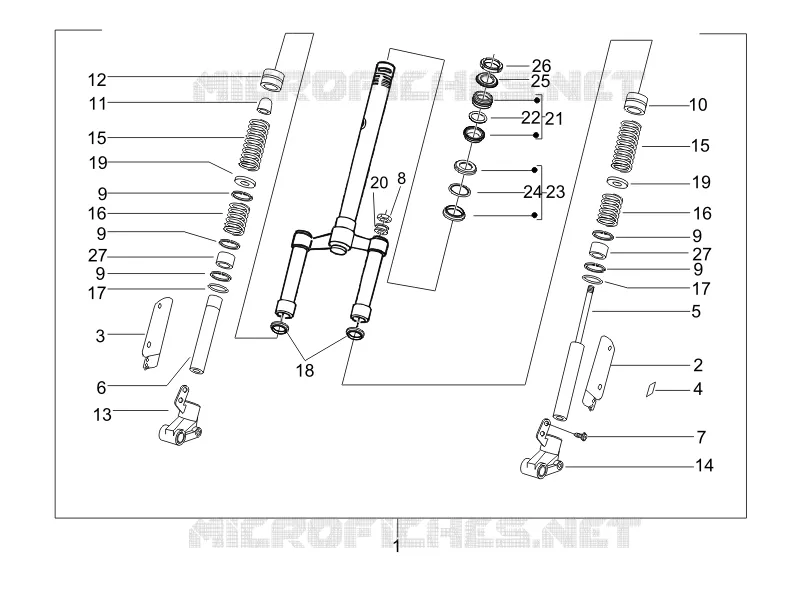

Fork/steering tube - Steering bearing unit
1
2
3
4
5
6
7
8
9
9
9
9
9
10
11
12
13
14
15
15
16
16
17
17
18
19
20
21
22
23
24
25
27
27
1
Front fork
56067R
Not Available
2
Guard
573760
Not Available
3
Guard
573761
Not Available
4
"Hydraulic Suspension" plate
576328
Not Available
5
Damper
274035
Not Available
6
Sleeve
272705
Not Available
7
Screw m16x16
015558
$3,65 Unit Price incl. VAT
8
Nut
274034
Not Available
9
Ring
272706
$3,65 Unit Price incl. VAT
10
Pad
273321
Not Available
11
Pad
274033
Not Available
12
Pad
463979
$5,53 Unit Price incl. VAT
13
Susp. leg
561674
Not Available
14
Susp. leg
561675
Not Available
15
Spring
272443
Not Available
16
Spring
272444
Not Available
17
Ring
561791
Not Available
18
Dust cover
272441
Not Available
19
Disc
463962
Not Available
20
Spacer
274036
Not Available
21
Upper thrust ring
CM061303
$65,02 Unit Price incl. VAT
22
Missing description
000000
Not Available
23
Lower steering bearing
CM061304
Not Available
24
Missing description
000000
Not Available
25
Washer of the steering
003751
$3,65 Unit Price incl. VAT
27
Spacer
272707
$15,31 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
