1
Engine displacement
50
2
Model
NRG
3
Year
2006
4
Trim
NRG Power DT
5
Parts Catalog
Remote control switches - Battery - Horn
6
Parts Diagram
Parts Catalog
Driving mirror/s
by
Rear wheel
Remote control switches - Battery - Horn
1
2
4
5
6
7
8
1
Horn
CM071812
Not Available
1
Horn
58033R
Not Available
2
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
4
Breather pipe
294485
$5,38 Unit Price incl. VAT
5
Battery 12V-4Ah
234390
$79,65 Unit Price incl. VAT
5
Hose clamp
639082
$3,65 Unit Price incl. VAT
6
Rem. control switch 12V-80A
584521
Not Available
6
Starter relay 12V-80A
58115R
$9,18 Unit Price incl. VAT
7
Washer 5.3x10x10
006965
$0,08 Unit Price incl. VAT
8
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT

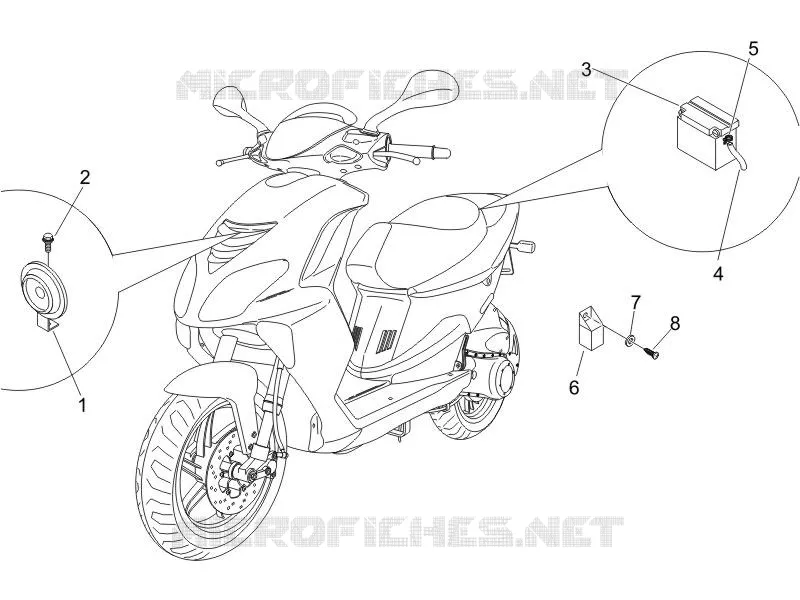

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
