1
Engine displacement
50
2
Model
NRG
3
Year
2005
4
Trim
NRG Power DT
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Handlebars - Master cil.
by
Fork/steering tube - Steering bearing unit

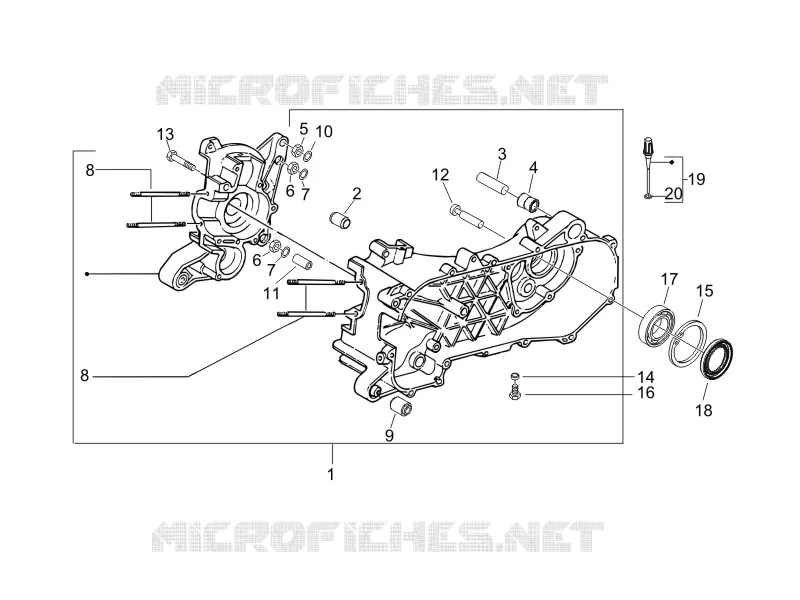

Crankcase
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Crankcase assembly
CM127321
Not Available
2
Pin 6,5x9,5x15
239388
Not Available
3
Spacer
266625
$3,70 Unit Price incl. VAT
4
Shock absorber connection silent block
267823
$4,92 Unit Price incl. VAT
5
Nut
020006
$0,34 Unit Price incl. VAT
6
Nut M8
020008
$0,08 Unit Price incl. VAT
7
Ring
113533
$0,09 Unit Price incl. VAT
8
Stud bolt
239382
Not Available
9
Silent-block
266773
$3,63 Unit Price incl. VAT
10
Ring
287223
$0,05 Unit Price incl. VAT
11
Bush Ø8xØ12x8
431860
$3,70 Unit Price incl. VAT
12
Shoe fulcrum pin
272921
$5,45 Unit Price incl. VAT
13
screw
414835
$0,15 Unit Price incl. VAT
14
Gasket
000397
Not Available
15
Circlip
006647
$1,10 Unit Price incl. VAT
16
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
17
Bearing 20x47x14
434735
$7,12 Unit Price incl. VAT
18
Gasket ring
478498
$8,12 Unit Price incl. VAT
19
Complete oil level dipstick
832130
$2,94 Unit Price incl. VAT
20
Gasket ring 14,43x9,19x2,62
827085
$2,99 Unit Price incl. VAT

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
