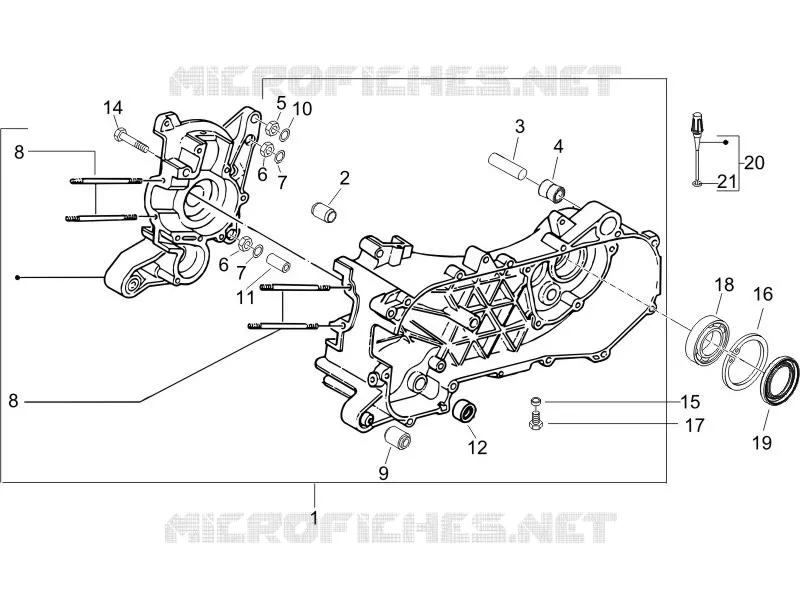

Crankcase FOR NRG Power DD Serie Speciale FROM 2010

Crankcase

1

Crankcase assembly

CM1273255

$441,96 Unit Price incl. VAT

2

Pin 6,5x9,5x15

239388

Not Available

3

Spacer

266625

$3,70 Unit Price incl. VAT

4

Shock absorber connection silent block

267823

$4,92 Unit Price incl. VAT

5

Nut

020006

$0,34 Unit Price incl. VAT

6

Nut M8

020008

$0,08 Unit Price incl. VAT

7

Ring

113533

$0,09 Unit Price incl. VAT

8

Stud bolt

239382

Not Available

8

Stud bolt

877283

$3,65 Unit Price incl. VAT

9

Silent-block

266773

$3,63 Unit Price incl. VAT

10

Ring

287223

$0,05 Unit Price incl. VAT

11

Bush Ã˜8xÃ˜12x8

431860

$3,70 Unit Price incl. VAT

12

Gasket ring

4352035

$5,09 Unit Price incl. VAT

14

screw

414835

$0,15 Unit Price incl. VAT

14

Screw w/ flange

B017632

$3,65 Unit Price incl. VAT

15

Gasket

000397

Not Available

16

Circlip

006647

$1,10 Unit Price incl. VAT

17

Hex socket screw M8x12

269755

$0,34 Unit Price incl. VAT

18

Bearing 20x47x14

434735

$7,12 Unit Price incl. VAT

19

Gasket ring

478498

$8,12 Unit Price incl. VAT

20

Complete oil level dipstick

832130

$2,94 Unit Price incl. VAT

21

Gasket ring 14,43x9,19x2,62

827085

$2,99 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
