Cooling system for NRG Power DD from 2017

Cooling system

1

Water cooler

575219

$30,89 Unit Price incl. VAT

2

Spring plate M6

254485

$0,34 Unit Price incl. VAT

3

Screw M6x16

272836

$3,70 Unit Price incl. VAT

4

Tank

959305

$34,38 Unit Price incl. VAT

5

Expansion tank plug

623673

$15,97 Unit Price incl. VAT

6

screw 4,2x19

258249

$0,09 Unit Price incl. VAT

7

Spring plate

CM017410

$0,34 Unit Price incl. VAT

8

Upper rubber

351782

$0,34 Unit Price incl. VAT

9

pipe

959304

$2,13 Unit Price incl. VAT

10

pipe

463876

$1,22 Unit Price incl. VAT

11

Hose clamp

CM001921

$3,65 Unit Price incl. VAT

12

Hose clamp

CM001902

Not Available

13

Water cooler-head tube

959303

$14,73 Unit Price incl. VAT

14

pipe

959306

$11,83 Unit Price incl. VAT

15

Hose clamp

CM001905

$1,38 Unit Price incl. VAT

16

Hose clamp

CM001909

$3,65 Unit Price incl. VAT

17

Air duct

9593164

$8,65 Unit Price incl. VAT

18

Self-tapping screw M5x12

015585

$0,08 Unit Price incl. VAT

19

Spring plate M5

248419

$0,67 Unit Price incl. VAT

20

Hose clamp

CM006901

$4,62 Unit Price incl. VAT

21

Non return spring

CM006902

$0,92 Unit Price incl. VAT

22

Non return spring L=23

CM006908

$0,50 Unit Price incl. VAT

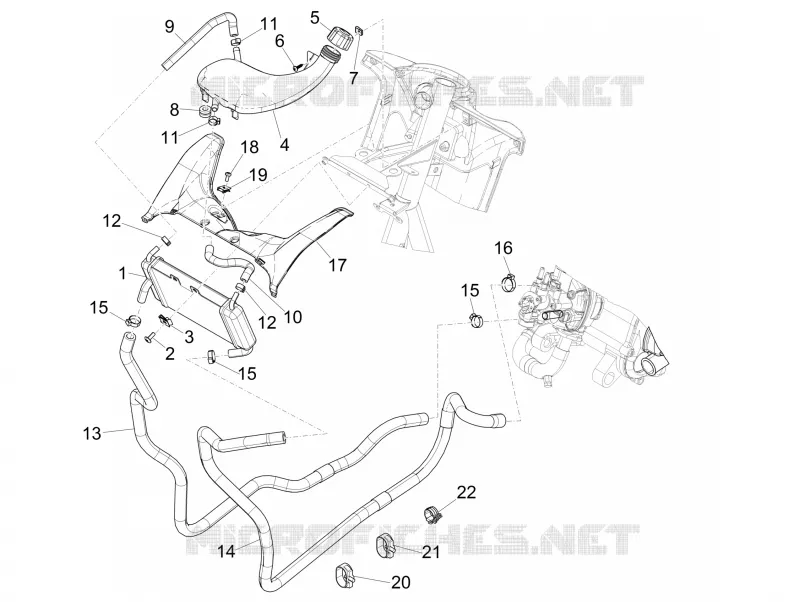

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
