1
Engine displacement
50
2
Model
NRG
3
Year
2005
4
Trim
NRG Power DD
5
Parts Catalog

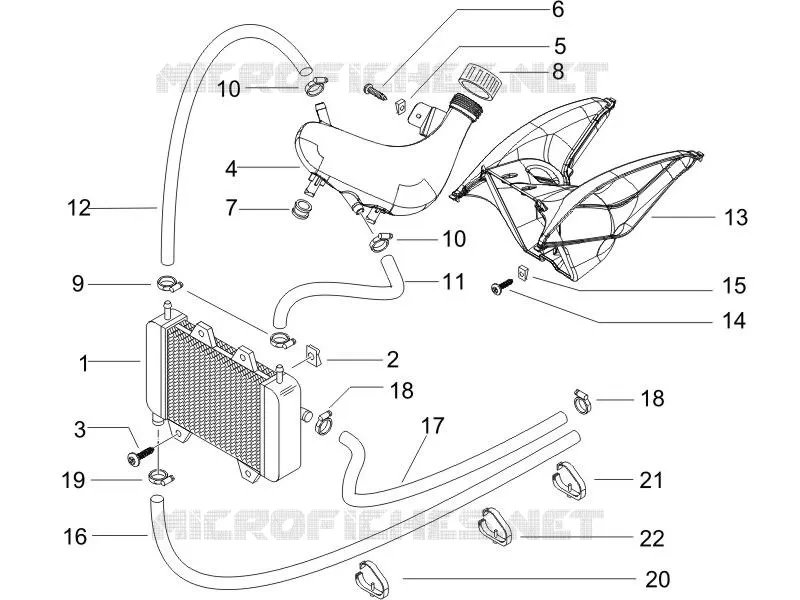

Cooling system
6
Parts Diagram
Parts Catalog
Carburettor, assembly - Union pipe
by
Handlebars - Master cil.
Cooling system
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
18
19
20
21
22
1
Water cooler
575219
$30,89 Unit Price incl. VAT
2
Spring plate M6
254485
$0,34 Unit Price incl. VAT
3
Screw M6x16
272836
$3,70 Unit Price incl. VAT
4
Tank
959305
$34,38 Unit Price incl. VAT
5
Spring plate
CM017410
$0,34 Unit Price incl. VAT
6
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
7
Upper rubber
351782
$0,34 Unit Price incl. VAT
8
Tank cap
573454
Not Available
8
Expansion tank plug
623673
$15,97 Unit Price incl. VAT
9
Hose clamp
CM001902
Not Available
10
Hose clamp
CM001921
$3,65 Unit Price incl. VAT
11
pipe
463876
$1,22 Unit Price incl. VAT
12
pipe
959304
$2,13 Unit Price incl. VAT
13
Air duct
9593164
$8,65 Unit Price incl. VAT
13
conveyor
959316
Not Available
14
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
15
Spring plate M5
248419
$0,67 Unit Price incl. VAT
16
Water cooler-head tube
959303
$14,73 Unit Price incl. VAT
17
pipe
959306
$11,83 Unit Price incl. VAT
18
Hose clamp
CM001905
$1,38 Unit Price incl. VAT
19
Hose clamp
CM001909
$3,65 Unit Price incl. VAT
20
Hose clamp
CM006901
$4,62 Unit Price incl. VAT
21
Non return spring
CM006902
$0,92 Unit Price incl. VAT
22
Non return spring L=23
CM006908
$0,50 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
