Flywheel magneto cover - Oil filter for GILERA PIAGGIO VESPA MP3 ie MIC from 2010

Flywheel magneto cover - Oil filter

1

Complete flywheel cover

8729175

Not Available

2

GUARNIZIONE CARTER / COPERCHIO VOLANO

872914

$17,25 Unit Price incl. VAT

3

Plug M12x1,5

411311

$0,67 Unit Price incl. VAT

4

RONDELLA PIANA D22 F12,1 S1

274246

$0,34 Unit Price incl. VAT

5

Oil plug

825665

Not Available

6

O-ring

479986

Not Available

7

FILTRO OLIO ASPIR.COMP

826033

$13,61 Unit Price incl. VAT

8

ANELLO OR 20,35X1,78

288474

$0,08 Unit Price incl. VAT

9

TAPPO FILTRO OLIO

826165

$5,88 Unit Price incl. VAT

10

GUARNIZIONE OR 31,47x1,78

285536

$0,92 Unit Price incl. VAT

11

VITE L.70

434429

$0,60 Unit Price incl. VAT

12

Screw w/ flange M6x25

414837

Not Available

13

VITE (M6X35)

414838

$0,67 Unit Price incl. VAT

14

screw

414835

$0,15 Unit Price incl. VAT

15

MOLLETTA

641201

$4,82 Unit Price incl. VAT

16

MANCETTA FISSAGGIO TUBAZIONE

849825

$4,82 Unit Price incl. VAT

17

STAFFA

640880

$5,38 Unit Price incl. VAT

18

TUBO SFIATO OLIO

829047

$2,57 Unit Price incl. VAT

19

RACCORDO FILTRO OLIO

829122

$4,13 Unit Price incl. VAT

20

GUARNIZIONE O-RING k6

237553

$1,36 Unit Price incl. VAT

21

Oil filter

82960R

$14,99 Unit Price incl. VAT

22

FASCETTA STRINGITUBO

CM002901

$0,09 Unit Price incl. VAT

23

TUBO SCARICO ACQUA

871795

$1,03 Unit Price incl. VAT

24

LAMIERINO BLOCC.VALV.CON P.I.

876060

$6,38 Unit Price incl. VAT

25

VITE AUTOMASCHIANTE

433800

$0,19 Unit Price incl. VAT

26

ROSETTA (16X10.5X2.5)

486075

$1,58 Unit Price incl. VAT

27

VALVOLA REGOL.PRESSIONE OLIO

829661

$6,44 Unit Price incl. VAT

28

MOLLA VALVOLA PRESS.OL

829486

$4,82 Unit Price incl. VAT

29

Timing plug assembly

829040

Not Available

30

O-ring

479986

Not Available

31

Oil pressure sensor

641541

Not Available

32

SUPPORTO LAMELLE COMPLETO

82778R

$12,01 Unit Price incl. VAT

33

FASCETTA

845978

$5,63 Unit Price incl. VAT

34

Gasket ring

873934

Not Available

35

ALBERO POMPA ACQUA

872536

$29,47 Unit Price incl. VAT

36

Water pump impeller cpl.

827929

Not Available

37

Gasket ring

842595

Not Available

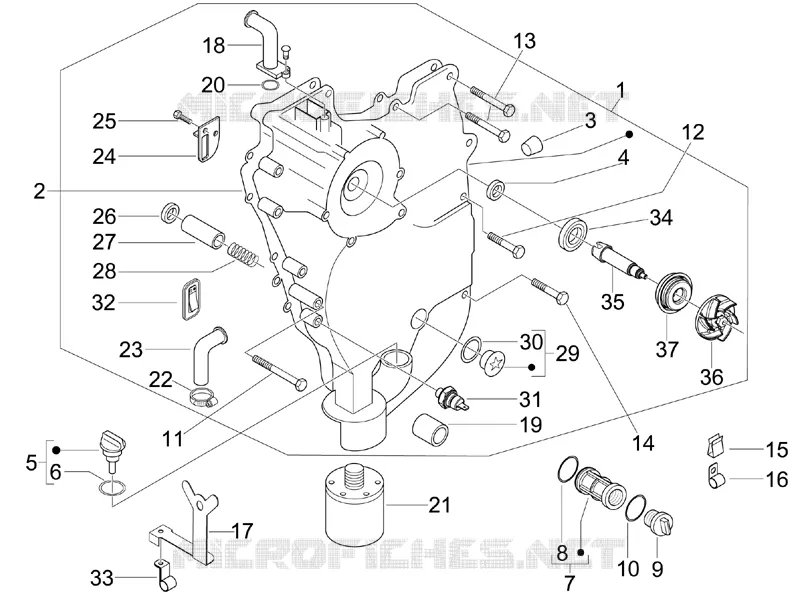

Find the detailed Flywheel magneto cover - Oil filter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
