Cooling system for GILERA PIAGGIO VESPA MP3 ie MIC from 2008

Cooling system

1

Water cooler

653468

Not Available

2

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

2

VITE METRICA IMP. TORX(H=16)

CM179301

$0,25 Unit Price incl. VAT

3

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

4

TAMPONE

258904

$0,25 Unit Price incl. VAT

5

FASCETTA A STRAPPO

257134

$0,25 Unit Price incl. VAT

6

FASCETTA STRINGITUBO (D.28,6 S.0,6 L.7)

CM001915

$1,03 Unit Price incl. VAT

7

GR. ELETTROVENTOLA COMPL.

58211R

$69,69 Unit Price incl. VAT

8

VITE METRICA CON INT.A CROCE M6x16.

272836

$3,70 Unit Price incl. VAT

8

VITE METRICA IMP. TORX(H=16)

CM179301

$0,25 Unit Price incl. VAT

9

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

10

TUBO COLLEGAMENTO TESTA/RADIATORE

652619

$67,48 Unit Price incl. VAT

11

Pump-radiator pipe fitting

652618

$72,85 Unit Price incl. VAT

12

FASCETTA STRINGITUBO(D.30,8 S.0,6 L.7)

CM001908

$3,65 Unit Price incl. VAT

13

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

14

FASCETTA STRINGITUBO

CM001907

$0,84 Unit Price incl. VAT

15

TUBO SFIATO RADIATORE

622581

$8,16 Unit Price incl. VAT

16

TUBO RADIATORE-VASO ESPANSIONE

622582

$7,23 Unit Price incl. VAT

17

FASCETTA STRINGITUBO

CM001903

$0,84 Unit Price incl. VAT

18

FASCETTA STRINGITUBO

CM001904

$0,75 Unit Price incl. VAT

19

Coolant tank

653463

Not Available

20

TAPPO SERB.LIQUIDO RAF

623673

$15,97 Unit Price incl. VAT

21

VITE

258249

$0,09 Unit Price incl. VAT

21

VITE AUTOFILET.CON IMPRONTA TORX

CM178604

$0,08 Unit Price incl. VAT

22

PIASTRINA ELASTICA

CM017410

$0,34 Unit Price incl. VAT

23

TAMPONE

258904

$0,25 Unit Price incl. VAT

24

MOLLETTA RITEGNO TUBI

CM006902

$0,92 Unit Price incl. VAT

25

MOLLETTA RITEGNO TUBI

CM006903

$1,43 Unit Price incl. VAT

26

MOLLETTA RITEGNO TUBI

CM017808

$4,82 Unit Price incl. VAT

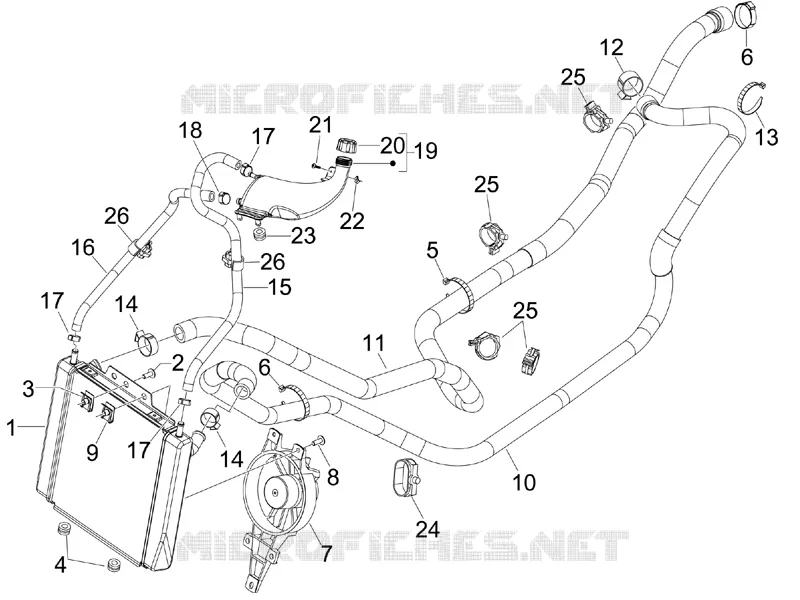

Find the detailed Cooling system GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
