Handlebars - Master cil. for GILERA PIAGGIO VESPA MP3 ie LT Touring from 2011

Handlebars - Master cil.

1

MANUBRIO CON P.I.

6570735

$75,13 Unit Price incl. VAT

2

VITE A TESTA CILINDRICA ESAGONO INCASS.

655554

$3,70 Unit Price incl. VAT

3

RONDELLA PIANA

178790

$0,51 Unit Price incl. VAT

4

RONDELLA ELASTICA PIANA DENT.INTERNA

012543

$0,08 Unit Price incl. VAT

5

ECROU

015330

$0,25 Unit Price incl. VAT

6

MANICOTTO COMANDO GAS COMPL.

CM079737

$223,03 Unit Price incl. VAT

7

TRASMISSIONE COM. APERTURA GAS

649340

$40,50 Unit Price incl. VAT

8

TRASMISSIONE COM. CHIUSURA GAS

649341

$41,85 Unit Price incl. VAT

9

MANOPOLA SX.

CM084201

$7,02 Unit Price incl. VAT

10

MANOPOLA DX.

CM084202

$7,02 Unit Price incl. VAT

11

VITE A TESTA SVASATA ESAG. INCASSATO

576836

$3,03 Unit Price incl. VAT

12

TERMINALE MANUBRIO

654603

$24,90 Unit Price incl. VAT

13

POMPA IDR. FRENO SX

CM081205

$136,35 Unit Price incl. VAT

14

PONTICELLO POMPA FRENO

600476

$11,06 Unit Price incl. VAT

15

LEVA FRENO

600475

$11,82 Unit Price incl. VAT

16

Right hydraulic pump (Brembo)

CM081304

Not Available

16

Right brake hydraulic pump (Brembo)

CM086004

Not Available

17

LEVA FRENO

646829

$27,00 Unit Price incl. VAT

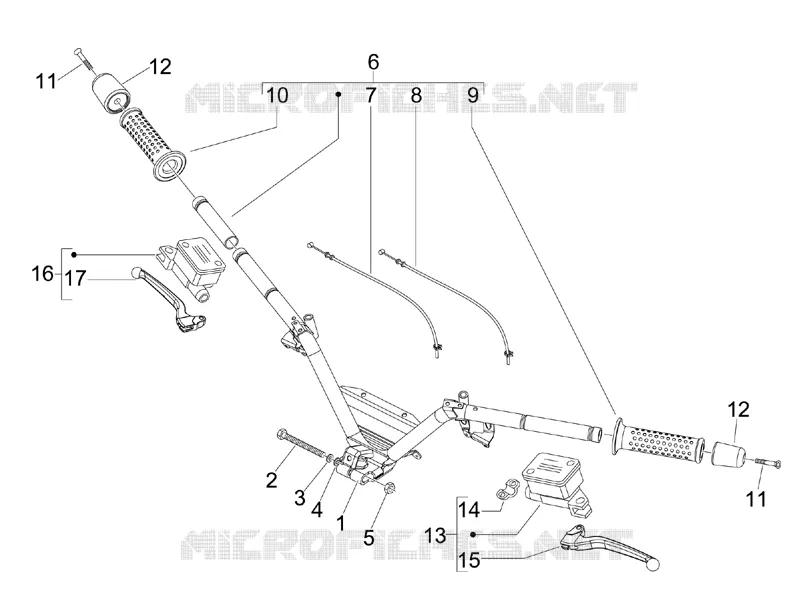

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
