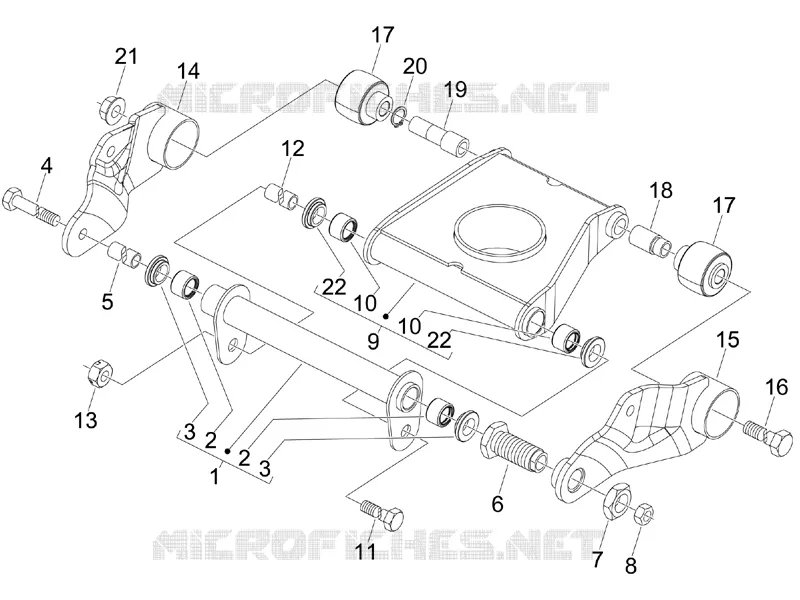

Swinging arm
1
2
2
3
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
17
18
19
20
21
22
22
1
Complete swinging arm on frame side
649154
$36,45 Unit Price incl. VAT
2
Roller cage
597374
Not Available
3
Bush
597317
$0,92 Unit Price incl. VAT
4
Hex socket screw
597080
$6,60 Unit Price incl. VAT
5
Spacer
CM067805
$15,31 Unit Price incl. VAT
6
Threaded bush
597774
$15,31 Unit Price incl. VAT
7
Nut m22x2 h=8
564611
$3,65 Unit Price incl. VAT
8
Self locking nut M10
231370
$0,38 Unit Price incl. VAT
8
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
9
Swinging arm
649100
$359,65 Unit Price incl. VAT
10
Roller cage
56127R
$5,55 Unit Price incl. VAT
11
Hex screw M10x202
271807
$4,41 Unit Price incl. VAT
12
Spacer L=183 mm
CM067801
$6,51 Unit Price incl. VAT
13
Self locking nut M10
232108
Not Available
13
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
14
Right silent block support plate with u.p.
649232
$37,78 Unit Price incl. VAT
15
Left silent block support plate with u.p.
649230
$65,02 Unit Price incl. VAT
16
M14x1.5 spring
649267
$22,46 Unit Price incl. VAT
17
End stop rod drift
649587
Not Available
18
Spacer
649265
$15,31 Unit Price incl. VAT
19
Spacer
649266
$22,46 Unit Price incl. VAT
20
Snap ring
006420
$0,19 Unit Price incl. VAT
21
Nut M14x1,5
827116
$1,60 Unit Price incl. VAT
22
Bush
597317
$0,92 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
