Wheel huosing - Mudguard for MP3 YOUrban ERL from 2014

Wheel huosing - Mudguard

1

Right front mudguard

66713400XR7

$86,84 Unit Price incl. VAT

1

Right front mudguard

66713400BT

$96,47 Unit Price incl. VAT

1

Right front mudguard

66713400EV

$71,39 Unit Price incl. VAT

1

Right front mudguard

66713400H2

$137,21 Unit Price incl. VAT

1

Right front mudguard

66713400BR

$82,89 Unit Price incl. VAT

1

Right front mudguard

66713400XN2

$69,15 Unit Price incl. VAT

1

Right front mudguard

66713400EZ

$87,87 Unit Price incl. VAT

2

Left mudguard connection pipe

667612

$86,34 Unit Price incl. VAT

3

Torx Screw

880285

$3,65 Unit Price incl. VAT

4

Hex socket screw

564606

$0,28 Unit Price incl. VAT

5

Spring washer

709047

$0,08 Unit Price incl. VAT

6

Left front mudguard

66700400BT

$127,87 Unit Price incl. VAT

6

Left front mudguard

66700400BR

$82,89 Unit Price incl. VAT

6

Left front mudguard

66700400EV

$127,87 Unit Price incl. VAT

6

Left front mudguard

66700400H2

$137,21 Unit Price incl. VAT

6

Left front mudguard

66700400EZ

$87,87 Unit Price incl. VAT

6

Left front mudguard

66700400XN2

$127,87 Unit Price incl. VAT

6

Left front mudguard

66700400XR7

$86,84 Unit Price incl. VAT

7

Right mudguard connection pipe

667610

$86,34 Unit Price incl. VAT

8

Torx Screw

880285

$3,65 Unit Price incl. VAT

9

Hex socket screw

564606

$0,28 Unit Price incl. VAT

10

Spring washer

709047

$0,08 Unit Price incl. VAT

11

Rear mudguard

672123

$9,64 Unit Price incl. VAT

12

Self tapping screw M6x35

259708

$3,70 Unit Price incl. VAT

13

Spring plate M6

254485

$0,34 Unit Price incl. VAT

14

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

15

Wheel compartment

673736

$26,06 Unit Price incl. VAT

16

Self tapping screw D4.2x16

CM178601

$0,16 Unit Price incl. VAT

17

Spring plate

CM017410

$0,34 Unit Price incl. VAT

18

Self tapping screw D4x16

CM180701

$0,16 Unit Price incl. VAT

19

Wheel housing central part

672142

$16,91 Unit Price incl. VAT

20

Metric screw M6x22

CM179201

$0,34 Unit Price incl. VAT

21

Self tapping screw D4x16

CM180701

$0,16 Unit Price incl. VAT

22

Wheel housing central closing

657392

$27,87 Unit Price incl. VAT

23

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

24

Spring plate M6

254485

$0,34 Unit Price incl. VAT

25

Self tapping screw D4.2x16

CM178601

$0,16 Unit Price incl. VAT

26

Spring plate

CM017410

$0,34 Unit Price incl. VAT

27

Self tapping screw D4x16

CM180701

$0,16 Unit Price incl. VAT

28

Cover

827173

$4,82 Unit Price incl. VAT

29

Oil tank flap

672143

$2,85 Unit Price incl. VAT

30

Self tapping screw D4.2x16

CM178601

$0,16 Unit Price incl. VAT

31

Expansion plug

199190

$2,95 Unit Price incl. VAT

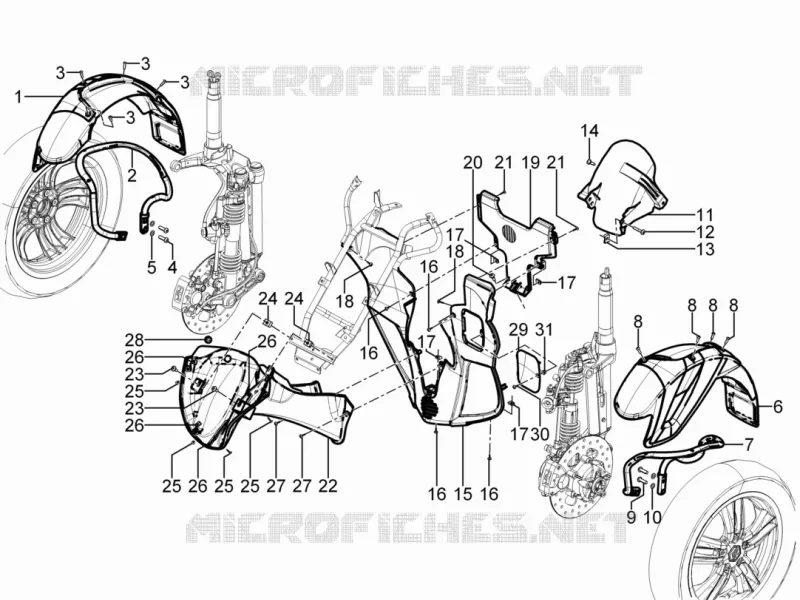

Find the detailed Wheel huosing - Mudguard GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
