Frame/bodywork for GILERA PIAGGIO VESPA MP3 4T 4V ie ERL Ibrido from 2013

Frame/bodywork

1

Frame

6563005

$676,35 Unit Price incl. VAT

2

Front sub-chassis with U.P.

6558355

$468,78 Unit Price incl. VAT

3

screw M8x20

031118

Not Available

4

Notched washer 14x8,3x1,8

012540

$0,08 Unit Price incl. VAT

5

Flat washer 8,4x18x2

003038

$0,25 Unit Price incl. VAT

6

Flat washer 6,4x12x1

003056

$0,08 Unit Price incl. VAT

7

Screw m6x12

031086

$0,08 Unit Price incl. VAT

8

Notched washer 6,6x11x0

012533

$0,67 Unit Price incl. VAT

9

Front sub-chassis strut

6227795

$118,20 Unit Price incl. VAT

10

Hex screw M8x30

031122

$2,95 Unit Price incl. VAT

11

Notched washer 14x8,3x1,8

012540

$0,08 Unit Price incl. VAT

12

Flat washer 8,4x18x2

003038

$0,25 Unit Price incl. VAT

13

Pipes connection cross pin

6234865

$128,80 Unit Price incl. VAT

14

Hex screw M8x30

031122

$2,95 Unit Price incl. VAT

15

Notched washer 14x8,3x1,8

012540

$0,08 Unit Price incl. VAT

16

Flat washer 8,4x18x2

003038

$0,25 Unit Price incl. VAT

17

Footrest support with u.p. right cross pin

CM1755055

Not Available

18

Cross pin for actuator

6536685

$28,44 Unit Price incl. VAT

19

screw M6x16

031088

$0,17 Unit Price incl. VAT

20

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

21

Flat washer 16x6,5x1,5

013880

$0,08 Unit Price incl. VAT

22

Handle support pipe and helmet compartment

6558035

$282,35 Unit Price incl. VAT

23

screw M8x20

031118

Not Available

24

Notched washer 14x8,3x1,8

012540

$0,08 Unit Price incl. VAT

25

Flat washer 8,4x18x2

003038

$0,25 Unit Price incl. VAT

26

Small carrier connector front pipe

653294

$18,75 Unit Price incl. VAT

27

Screw m8x18 zn

031117

$0,19 Unit Price incl. VAT

28

Notched washer 14x8,3x1,8

012540

$0,08 Unit Price incl. VAT

29

Flat washer 8,4x18x2

003038

$0,25 Unit Price incl. VAT

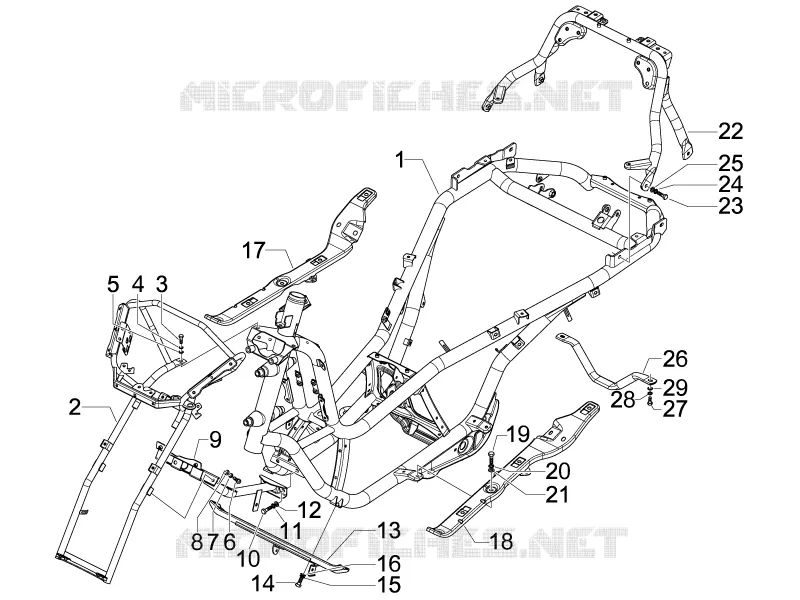

Find the detailed Frame/bodywork GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
