Frame/bodywork for GILERA PIAGGIO VESPA MP3 ie MIC from 2009

Frame/bodywork

1

FRAME

6554895

Not Available

2

Front sub-chassis with U.P.

6558355

$468,78 Unit Price incl. VAT

3

VITE TE M8X22 CL8.8 k6

031119

$3,65 Unit Price incl. VAT

4

RONDELLA ELASTICA CON DENTATURA

012540

$0,08 Unit Price incl. VAT

5

ROSETTA PIANA SEMILAVORATA

003038

$0,25 Unit Price incl. VAT

6

VITE TE M6X12

031086

$0,08 Unit Price incl. VAT

7

ROSETTA ELASTICA PIANA CON DENT.ESTERNA

012533

$0,67 Unit Price incl. VAT

8

RONDELLA PIANA 6,4x12x1

003056

$0,08 Unit Price incl. VAT

9

PUNTONE TELAIETTO ANT.

6227795

$118,20 Unit Price incl. VAT

10

VITE TE M8X22 CL8.8 k6

031119

$3,65 Unit Price incl. VAT

11

RONDELLA ELASTICA CON DENTATURA

012540

$0,08 Unit Price incl. VAT

12

ROSETTA PIANA SEMILAVORATA

003038

$0,25 Unit Price incl. VAT

13

TRAVERSINO COLLEGAMENTO TUBI

6234865

$128,80 Unit Price incl. VAT

14

VITE TE M8X30 IF CL8.8

031122

$2,95 Unit Price incl. VAT

15

RONDELLA ELASTICA CON DENTATURA

012540

$0,08 Unit Price incl. VAT

16

ROSETTA PIANA SEMILAVORATA

003038

$0,25 Unit Price incl. VAT

17

Footrest support with u.p. right cross pin

CM1755055

Not Available

18

Left footrest support cross pin with u.p.

CM175501

Not Available

19

VITE TESTA ES. INTERAMENTE FILETTATO

031088

$0,17 Unit Price incl. VAT

20

RONDELLA ELASTICA (6,4X11,8X1)

016406

$0,34 Unit Price incl. VAT

21

RONDELLA PIANA METALLICA

013880

$0,08 Unit Price incl. VAT

22

TUBO SOST. MAN. E VANO CASCO CON P.I.

6558035

$282,35 Unit Price incl. VAT

23

VITE TE M8X22 CL8.8 k6

031119

$3,65 Unit Price incl. VAT

24

RONDELLA ELASTICA CON DENTATURA

012540

$0,08 Unit Price incl. VAT

25

ROSETTA PIANA SEMILAVORATA

003038

$0,25 Unit Price incl. VAT

26

TUBO ANT. ATTACCO BILANCELLA

653294

$18,75 Unit Price incl. VAT

27

VITE TE M8X18 CL8.8 ZN

031117

$0,19 Unit Price incl. VAT

28

RONDELLA ELASTICA CON DENTATURA

012540

$0,08 Unit Price incl. VAT

29

ROSETTA PIANA SEMILAVORATA

003038

$0,25 Unit Price incl. VAT

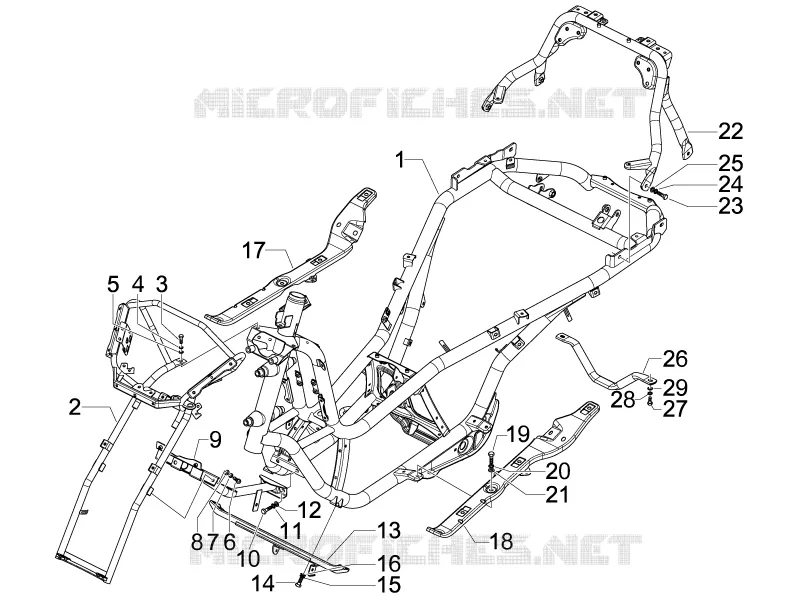

Find the detailed Frame/bodywork GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
