Engine displacement
250
2
Model
MP3
3
Year
2009
4
Trim
MP3 ie LT
5
Parts Catalog
Main cable harness
6
Parts Diagram
Parts Catalog
Control pedals - Levers
by
Crankcase cover - Crankcase cooling
Main cable harness
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
GRUPPO CAVETTI
641393
$477,77 Unit Price incl. VAT
2
CAPPUCCIO DI PROTEZIONE
581061
$1,37 Unit Price incl. VAT
3
Fuse 30A
581440
Not Available
3
FUSIBILE 20 A.
580561
$0,42 Unit Price incl. VAT
3
FUSIBILE 7,5 A
252945
$0,42 Unit Price incl. VAT
3
FUSIBILE
582930
$4,38 Unit Price incl. VAT
3
FUSIBILE LAMELLARE 15A
290860
$5,73 Unit Price incl. VAT
3
FUSIBILE LAMELLARE 10
292507
$0,42 Unit Price incl. VAT
4
MOLLA PER CONNETTORE
584520
$5,38 Unit Price incl. VAT
5
FASCETTA A STRAPPO
145298
$0,08 Unit Price incl. VAT
6
CAPPUCCIO ISOLANTE( NON FORNIBILE P.R.)
292136
Not Available
6
Ambient temperature sensor
581142
Not Available
7
Right speed sensor cable assembly
640959
Not Available
8
VITE TESTA ESAGON.FLANG. M6X10
969296
$0,16 Unit Price incl. VAT
9
FASCETTA
573918
$1,09 Unit Price incl. VAT
10
Left speed sensor cable assembly
640960
Not Available
11
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
12
RONDELLA PIANA 16x4,2x1
013963
$0,19 Unit Price incl. VAT
13
FASCETTA METALLICA
271477
$3,65 Unit Price incl. VAT
14
Hose clamp
D9004461193
$5,38 Unit Price incl. VAT
15
FASCETTA
638792
$4,82 Unit Price incl. VAT
16
MOLLETTA RITEGNO TUBI
CM006903
$1,43 Unit Price incl. VAT
17
MOLLETTA RITEGNO TUBI
CM013201
$0,40 Unit Price incl. VAT
18
FASCETTA A STRAPPO
257134
$0,25 Unit Price incl. VAT
19
FASCETTA A STRAPPO
145298
$0,08 Unit Price incl. VAT
20
MOLLETTA FISS.TUBI CARBURANTE
CM006910
$0,25 Unit Price incl. VAT
21
FASCETTA A STRAPPO
257134
$0,25 Unit Price incl. VAT
22
Ambient temperature sensor
581142
Not Available
23
MOLLA PER CONNETTORE
584520
$5,38 Unit Price incl. VAT
24
CAVO DI MASSA
640456
$4,32 Unit Price incl. VAT
25
VITE TESTA ES. INTERAMENTE FIL. M6x18
031089
$2,99 Unit Price incl. VAT
26
Ground cable
581424
Not Available
27
VITE A TESTA ESAGONALE FLANGIATA
484123
$0,16 Unit Price incl. VAT
28
ROND.DENT.EST. D9 F5,2 S1,3
012532
$0,67 Unit Price incl. VAT
29
VITE A TESTA ESAGONALE FLANGIATA
484123
$0,16 Unit Price incl. VAT
30
RONDELLA ELASTICA BOMBATA
012528
$0,34 Unit Price incl. VAT
31
STAFFA
639843
$6,30 Unit Price incl. VAT
32
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT

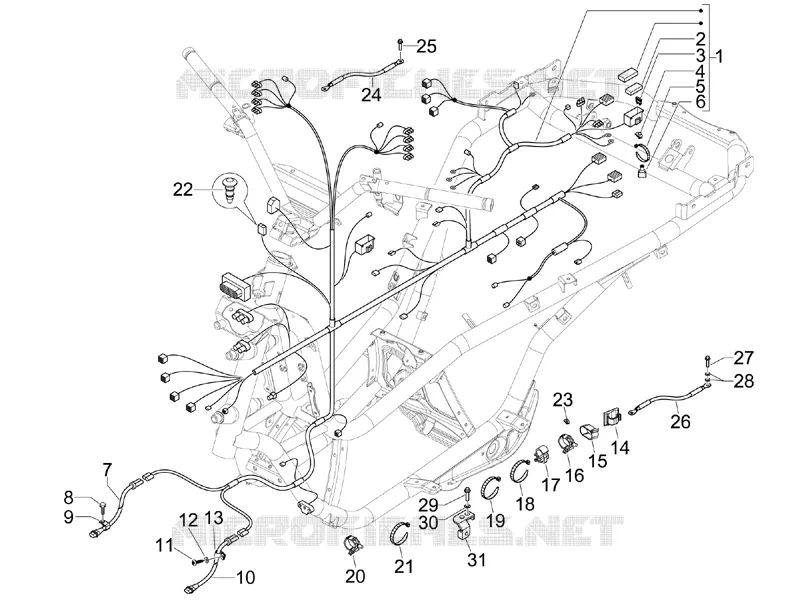

Find the detailed Main cable harness GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
