by

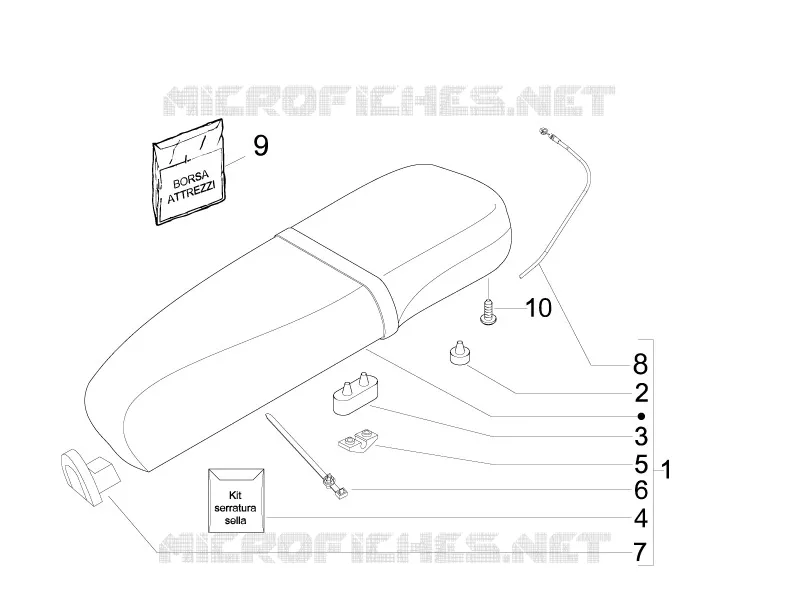

Saddle/seats
1
2
3
4
5
6
7
8
9
10
1
Saddle assembly
CM02520200C2
Not Available
1
Saddle assembly
CM02520200C1
$402,57 Unit Price incl. VAT
1
Saddle assembly
CM02520200GS
$402,57 Unit Price incl. VAT
2
Pad
577492
$4,21 Unit Price incl. VAT
3
Stop buffer
296456
$2,77 Unit Price incl. VAT
4
Lock, assy
497457
$57,27 Unit Price incl. VAT
5
Bracket
296743
$5,73 Unit Price incl. VAT
6
Hose clamp
298729
$0,34 Unit Price incl. VAT
7
Hook for bag
494634
$10,35 Unit Price incl. VAT
8
Saddle opening transmission kit
653994
$47,91 Unit Price incl. VAT
9
Tool roll
635095
Not Available
10
Screw w/ flange
436788
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
