Crankcase FOR Liberty 4T PTT E3 (E) FROM 2012

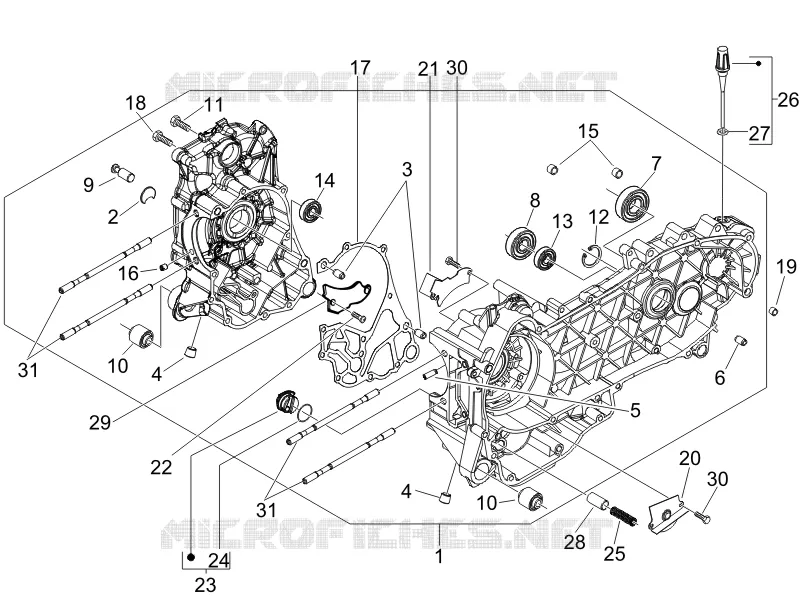

Crankcase

1

Complete crankcase Cat.1

CM1485205001

$2 726,59 Unit Price incl. VAT

1

Complete crankcase Cat.2

CM1485205002

Not Available

1

Complete crankcase 1st cat.

CM1485075001

Not Available

1

2nd cat. complete crankcase

CM1485075002

Not Available

2

Cup

840489

$0,33 Unit Price incl. VAT

3

Pin 6,5x9,5x15

239388

Not Available

4

Plug M12x1,5

411311

$0,67 Unit Price incl. VAT

5

Nozzle

484034

$6,44 Unit Price incl. VAT

6

Bush Ã˜8xÃ˜12x8

431860

$3,70 Unit Price incl. VAT

7

Radial ball bearing 15x42x13

83018R

$4,46 Unit Price incl. VAT

8

Radial ball bearing 20x47x14

833701

Not Available

9

Springs fixing pin

483785

$5,45 Unit Price incl. VAT

10

Silent-block

486081

$6,73 Unit Price incl. VAT

11

Screw w/ flange M6x60

B016425

$1,01 Unit Price incl. VAT

12

Circlip 25x26,9x1,2

B015959

$0,34 Unit Price incl. VAT

13

Gasket ring 20-32-7

82878R

$10,25 Unit Price incl. VAT

14

Gasket ring 20-30-7

82898R

$4,36 Unit Price incl. VAT

15

Locating dowel Ã˜11x10

478115

$0,24 Unit Price incl. VAT

16

Nozzle D 1.1

844582

$0,05 Unit Price incl. VAT

17

Gasket

875111

$3,34 Unit Price incl. VAT

18

Screw w/ flange M6x60

B016425

$1,01 Unit Price incl. VAT

19

Locating dowel Ã˜7,5x12

277916

$0,34 Unit Price incl. VAT

20

Lower oil bulkhead

483767

$0,38 Unit Price incl. VAT

21

Upper oil bulkhead

485047

$0,48 Unit Price incl. VAT

22

Screw M5x10

018575

$2,95 Unit Price incl. VAT

23

Filter door insert

845861

$3,82 Unit Price incl. VAT

24

Gasket

431065

$0,42 Unit Price incl. VAT

25

Spring

485655

$1,26 Unit Price incl. VAT

26

Complete oil level dipstick

832130

$2,94 Unit Price incl. VAT

27

Gasket ring 14,43x9,19x2,62

827085

$2,99 Unit Price incl. VAT

28

Oil pressure valve

829661

$6,44 Unit Price incl. VAT

29

Plate

876657

$5,38 Unit Price incl. VAT

30

Screw w/ flange M5x16

830061

$0,34 Unit Price incl. VAT

31

Stud bolt

1A003628R

$10,95 Unit Price incl. VAT

31

Stud bolt

411295

$1,58 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
