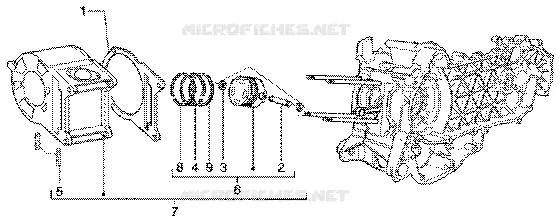

Cylinder-piston-wrist pin, assy
1
2
3
4
5
6
7
9
1
Cylinder base gasket 0,8 mm
828148
Not Available
1
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
1
Cylinder base gasket 0,4 mm
828146
Not Available
2
Piston pin
825172
Not Available
3
Stop ring
239455
$0,44 Unit Price incl. VAT
4
Oil scraper ring
487884
Not Available
5
Stud bolt M6
239397
$0,24 Unit Price incl. VAT
6
Pist.-wrist pin assy.
8286975002
Not Available
6
Pist.-wrist pin assy.
8286975003
Not Available
6
Pist.-wrist pin assy.
8286975004
Not Available
6
Pist.-wrist pin assy.
8286975001
Not Available
7
Cyl.unit
828696
Not Available
9
Oil scraper ring
487883
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
