1
Engine displacement
80
2
Model
SFERA
3
Year
0
4
Trim
Sfera RST
5
Parts Catalog
Side covers
6

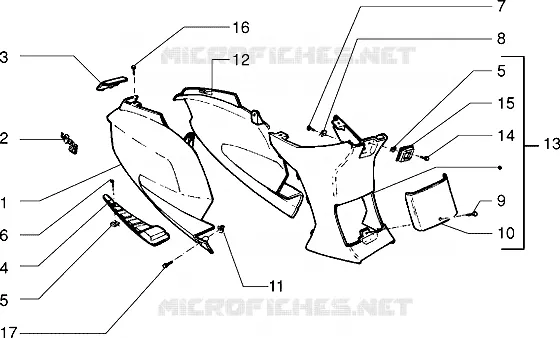

Parts Diagram
Parts Catalog
Case helmet
by
Front and rear mudguard
Side covers
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Fairing
4250045
Not Available
1
Fairing
4250945
Not Available
1
Fairing
4250005
Not Available
1
Fairing
4250905
Not Available
1
Fairing
4250955
Not Available
1
Fairing
4250865
Not Available
1
Fairing
4250935
Not Available
2
"80" name plate
298069
Not Available
3
Element
4251045
Not Available
3
Element
4251005
$4,48 Unit Price incl. VAT
3
Element
4251905
Not Available
3
Element
4251865
Not Available
3
Element
4251935
Not Available
3
Element
4251955
Not Available
3
Element
4251945
Not Available
4
Foot rest
297344000A
$3,83 Unit Price incl. VAT
4
Foot rest
297343000A
Not Available
5
Spring plate
184142
Not Available
6
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
7
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
8
Spring plate M6
254485
$0,34 Unit Price incl. VAT
9
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
10
Flap
297357000A
Not Available
11
Spring plate
184142
Not Available
12
Fairing
4883865
Not Available
12
Fairing
4883905
Not Available
12
Fairing
4883945
Not Available
12
Fairing
4883005
Not Available
12
Fairing
4883955
Not Available
12
PANEL
4883045
Not Available
12
Fairing
4883935
Not Available
13
Tyre
297355000A
Not Available
14
screw
008455
$2,25 Unit Price incl. VAT
15
Hook
265093
$10,67 Unit Price incl. VAT
16
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
17
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
