1
Engine displacement
80
2
Model
SFERA
3
Year
0
4
Trim
Sfera RST
5
Parts Catalog

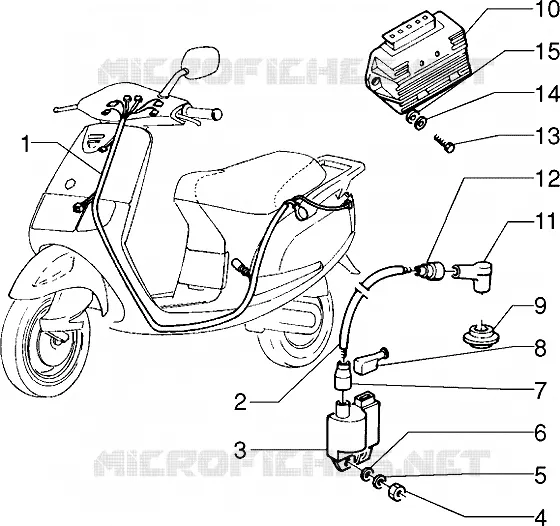

Electrical devices
6
Parts Diagram
Parts Catalog
Front brake cylinder
by
Crankshaft
Electrical devices
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
Cable harness
293559
Not Available
2
H.V. cable
080341
$5,89 Unit Price incl. VAT
3
H.t. coil
2921945
Not Available
4
Nut
020105
$0,25 Unit Price incl. VAT
5
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
6
Flat washer 5,2x18x1,5
016686
$2,25 Unit Price incl. VAT
7
Insulating cap
231571
$1,11 Unit Price incl. VAT
8
Cap
255256
$3,39 Unit Price incl. VAT
9
Collar
288632
Not Available
9
Collar
292005
Not Available
10
Regulator
2940165
$43,20 Unit Price incl. VAT
11
Screened cap
2559835
$8,78 Unit Price incl. VAT
12
Insulating cap
071671
$1,29 Unit Price incl. VAT
13
Screw m16x16
015558
$3,65 Unit Price incl. VAT
14
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
15
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
