1
Engine displacement
80
2
Model
SFERA
3
Year
0
4
Trim
Sfera RST
5
Parts Catalog
Driven pulley
6

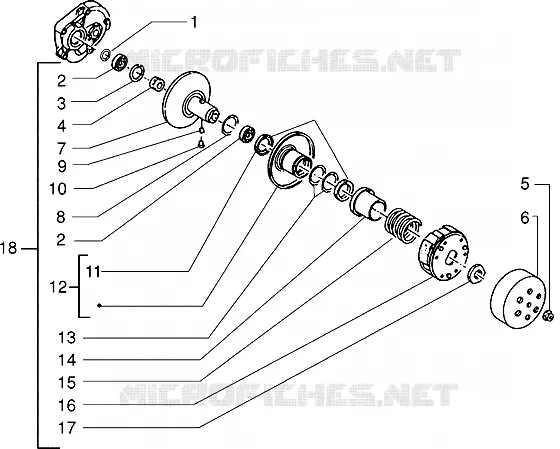

Parts Diagram
Parts Catalog
Clutch cover-scrool cover
by
Driving pulley
Driven pulley
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Spacer
286182
Not Available
2
Bearing
285007
Not Available
3
Cup
289184
Not Available
4
Spacer
286183
Not Available
5
Flanged nut M10x1,25
289519
$0,56 Unit Price incl. VAT
6
Clutch drum
482693
Not Available
7
Pulley, half
478106
Not Available
8
Gasket
289386
$0,11 Unit Price incl. VAT
9
Roller
285358
Not Available
10
Pin
487155
Not Available
11
Gasket ring
431089
$2,55 Unit Price incl. VAT
12
Pulley, half
4781045
Not Available
13
Gasket
430585
$4,89 Unit Price incl. VAT
14
Cup
435317
$3,46 Unit Price incl. VAT
15
Spring
435315
$8,36 Unit Price incl. VAT
16
Jet
4798296
Not Available
17
Ring nut
285017
$2,20 Unit Price incl. VAT
18
Not available
4790565
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
