Front wheel for GILERA PIAGGIO VESPA Beverly from 2006

Front wheel

1

Front wheel complete

56371R00B1

Not Available

1

RUOTA ANT. COMPL.CUSCI

522411T0B1

$492,75 Unit Price incl. VAT

2

Front wheel axle

599102

Not Available

3

DISTANZIALE

564448

$8,01 Unit Price incl. VAT

4

Bearing

327187

$11,03 Unit Price incl. VAT

5

SCODELLINO DX

564489

$3,65 Unit Price incl. VAT

6

DADO

271740

$0,67 Unit Price incl. VAT

7

Bearing

564491

$9,18 Unit Price incl. VAT

8

DISTANZIALE

597291

$10,95 Unit Price incl. VAT

9

Hex socket screw M6x20

271147

$0,17 Unit Price incl. VAT

10

VALVOLA TUBELESS

597679

$3,03 Unit Price incl. VAT

11

DISCO FRENO

56397R

$99,90 Unit Price incl. VAT

11

Brake disc

597243

Not Available

12

Tyre (Pirelli) 110/70-16"

599064

Not Available

12

Tyre (Michelin) 110/70-16"

599884

Not Available

18

Spedometer socket

56147R

$14,32 Unit Price incl. VAT

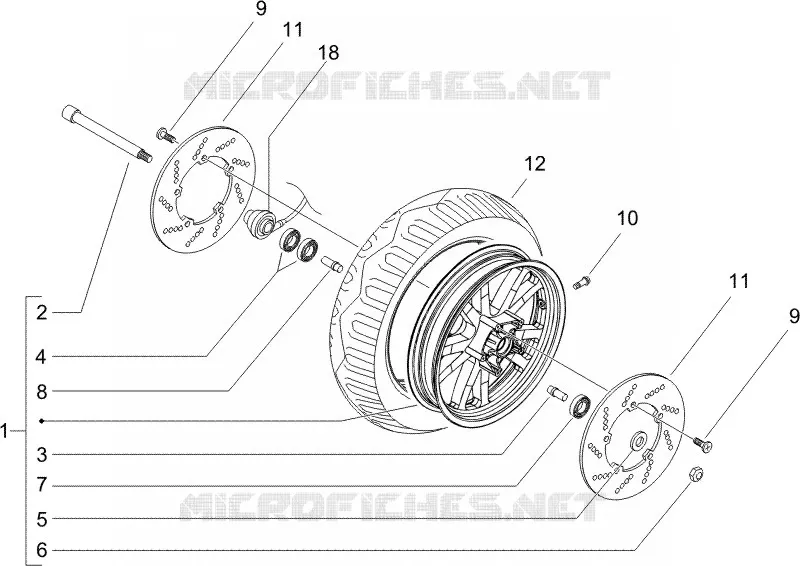

Find the detailed Front wheel GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
