Silencer for GILERA PIAGGIO VESPA Beverly from 2006

Silencer

1

Silencer

841027

Not Available

2

VITE TBEI M6X20

834038

$0,29 Unit Price incl. VAT

3

RONDELLA PIANA

834039

$2,95 Unit Price incl. VAT

4

PASSACAVO

834040

$5,00 Unit Price incl. VAT

5

BICCHIERINO

834643

$4,82 Unit Price incl. VAT

6

DISTANZIALE

834041

$5,20 Unit Price incl. VAT

7

Bushing

828185

Not Available

8

VITE TESTA BOMBATA ESAGONALE

833569

$2,95 Unit Price incl. VAT

9

MOLLA A TAZZA

840782

$4,82 Unit Price incl. VAT

10

PROTEZIONE COLLETTORE MARMITTA

840263

$36,86 Unit Price incl. VAT

11

MANIFOLD

843025

Not Available

12

ROSETTA METALLICA

830298

$3,65 Unit Price incl. VAT

13

TAPPO FILETTATO

833417

$5,53 Unit Price incl. VAT

14

FASCETTA

874957

$18,12 Unit Price incl. VAT

14

Hose clamp

840370

Not Available

15

ROSETTA CONICA ZIGRINATA

834951

$0,15 Unit Price incl. VAT

16

PROTEZIONE MARMITTA ES

833910

$40,12 Unit Price incl. VAT

17

Protection

834046

Not Available

18

GUARNIZ.MARMITTA-TESTA

828194

$7,94 Unit Price incl. VAT

19

VITE A TESTA CILINDRICA CON ESAGONO INCA

842502

$1,43 Unit Price incl. VAT

20

VITE TESTA BOMBATA CHIAVE TORX

599208

$0,62 Unit Price incl. VAT

21

Nut M8

020208

$2,95 Unit Price incl. VAT

22

DADO M8-6H

020008

$0,08 Unit Price incl. VAT

23

DADO AFR FLG M8 CL6S H

015341

$0,42 Unit Price incl. VAT

24

RONDELLA ELASTICA

007608

$2,95 Unit Price incl. VAT

25

RONDELLA PIANA

003058

$0,08 Unit Price incl. VAT

26

ROSETTA ELASTICA TIPO "CONTACT"

834187

$0,16 Unit Price incl. VAT

27

RONDELLA PIANA

840569

$3,65 Unit Price incl. VAT

28

RONDELLA PIANA

846163

$3,65 Unit Price incl. VAT

29

PERNO SUPP.ATTACCO MARMITTA

599391

$17,07 Unit Price incl. VAT

30

PERNO INF. ATTACCO FASCIA MARMITTA

599392

$8,91 Unit Price incl. VAT

31

Silencer support band

599553

Not Available

32

VITE TESTA BOMBATA ESAGONALE

833569

$2,95 Unit Price incl. VAT

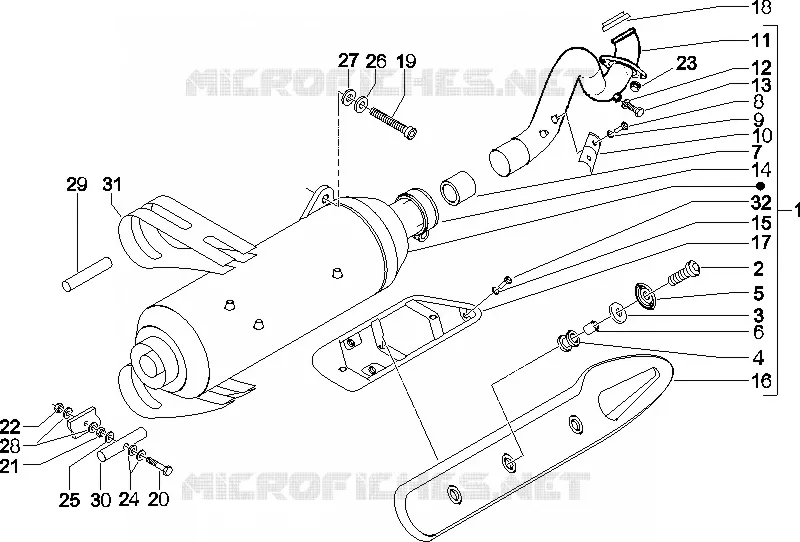

Find the detailed Silencer GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
