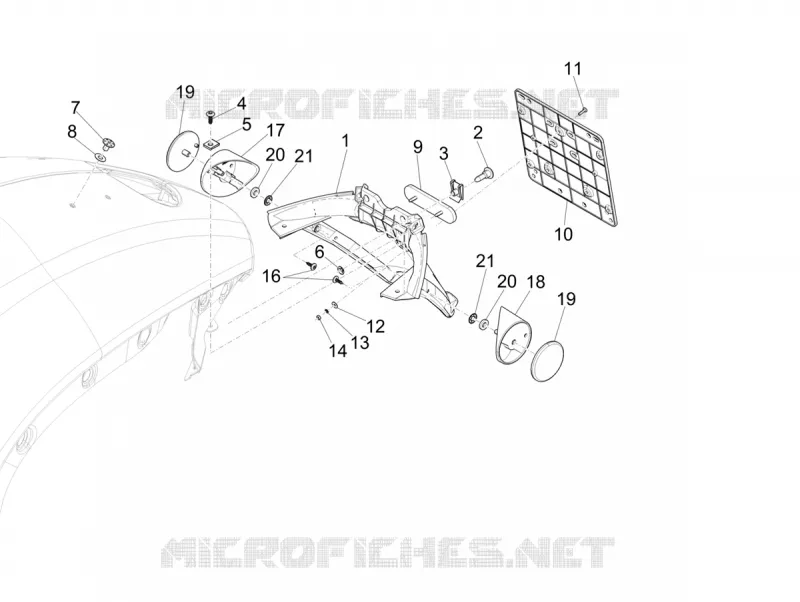

Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
19
20
20
21
21
1
Rear protection
1B004443
$17,99 Unit Price incl. VAT
2
screw
CM179202
$0,25 Unit Price incl. VAT
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
5
Spring plate
CM017409
$0,08 Unit Price incl. VAT
6
Spring plate
181351
$0,17 Unit Price incl. VAT
7
TBIC screw M6x10
1B000098
$8,57 Unit Price incl. VAT
8
Flat washer
1B000163
$0,92 Unit Price incl. VAT
9
Reflector
294519
$5,88 Unit Price incl. VAT
10
Number plate holder
584884
$2,30 Unit Price incl. VAT
11
screw M4x14
018591
Not Available
12
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
13
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
14
Nut M4
020104
$1,26 Unit Price incl. VAT
16
Self tapping screw
297498
$0,08 Unit Price incl. VAT
17
RH rear reflector mount
1B004458
$2,19 Unit Price incl. VAT
18
LH rear reflector mount
1B004457
$2,19 Unit Price incl. VAT
19
Reflector
290315
$7,94 Unit Price incl. VAT
20
Spacer
479882
$0,67 Unit Price incl. VAT
21
Plate
180859
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
