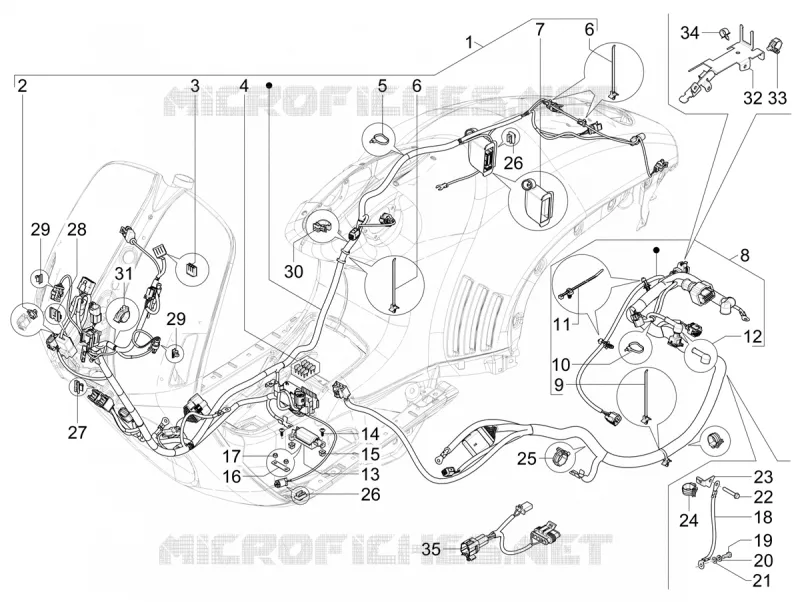

MAIN WIRING HARNESS
1
2
3
4
4
4
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
29
30
31
32
33
34
35
1
Groupe câbles châssis
1D004970
Not Available
2
Plugs spring
1D000129
$1,42 Unit Price incl. VAT
3
Connector
252605
$0,34 Unit Price incl. VAT
4
Mini fuse 7,5A
CM080905
$0,25 Unit Price incl. VAT
4
Mini fuse 5A
CM080904
$1,09 Unit Price incl. VAT
4
Mini fuse 10A
CM080906
$1,09 Unit Price incl. VAT
4
Mini fuse 20A
CM080908
$0,76 Unit Price incl. VAT
5
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
6
Hose clamp 2,7x132
640879
$0,92 Unit Price incl. VAT
7
ABS connector insulating cap
860746
$4,12 Unit Price incl. VAT
8
Faisceau de câbles moteur
1D004971
Not Available
9
Hose clamp 2,7x132
640879
$0,92 Unit Price incl. VAT
10
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
11
Wiring clip
1D001143
$0,34 Unit Price incl. VAT
12
Cap
583971
$0,59 Unit Price incl. VAT
13
Fuse holder
643461
$10,09 Unit Price incl. VAT
14
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
15
Expansion plug
157716
$0,08 Unit Price incl. VAT
16
Switch
643492
$6,89 Unit Price incl. VAT
17
Stop nut M5-6H DIN 985
804457
$0,16 Unit Price incl. VAT
18
Engine ground lead
1D000144
$5,38 Unit Price incl. VAT
19
Tri/lobed hexagonal self-tapping screw
641204
$0,34 Unit Price incl. VAT
20
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
21
Flat washer 6,4x12x1
003056
$0,08 Unit Price incl. VAT
22
screw M6x35
414838
$0,67 Unit Price incl. VAT
23
Support bracket
1D000049
$5,80 Unit Price incl. VAT
24
Non return spring
CM006912
$0,42 Unit Price incl. VAT
25
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
26
Molletta
B005629
$0,84 Unit Price incl. VAT
27
Maintenance
584002
$1,77 Unit Price incl. VAT
28
Spring for connector
641769
$2,27 Unit Price incl. VAT
29
Spring for connector
639560
$0,67 Unit Price incl. VAT
30
Pipes/cables retainer spring
CM013202
$1,10 Unit Price incl. VAT
31
Non return spring
CM006912
$0,42 Unit Price incl. VAT
32
Etrier
1B012055
$34,13 Unit Price incl. VAT
33
Non return spring
CM006911
$0,42 Unit Price incl. VAT
34
Elastic spring
231590
$0,25 Unit Price incl. VAT
35
Joint.p.
680178
$18,58 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
