by

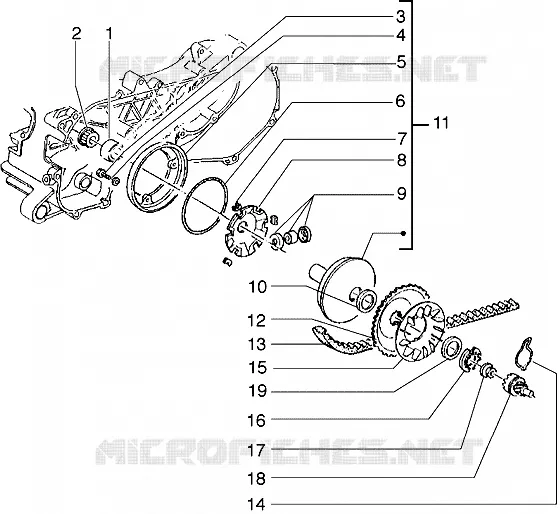

Driving pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Spacer
479495
$1,44 Unit Price incl. VAT
2
Toothed pulley
286158
$1,35 Unit Price incl. VAT
3
screw
015947
Not Available
4
Spring washer
006964
$0,67 Unit Price incl. VAT
5
Cover
480228
Not Available
6
Ring
479558
Not Available
7
Sliding block
289931
$4,82 Unit Price incl. VAT
8
Roller contrast
480227
$12,88 Unit Price incl. VAT
9
6 rollers kit
CM1102015
$21,20 Unit Price incl. VAT
9
Rollers kit
CM1102025
$21,20 Unit Price incl. VAT
9
Rollers kit 25 KM/H
CM1102045
$21,20 Unit Price incl. VAT
10
Spacer
CM100606
$3,65 Unit Price incl. VAT
11
Half-pulley assy., driving
CM110301
$75,60 Unit Price incl. VAT
11
Half-pulley assy., driving
CM110302
$93,15 Unit Price incl. VAT
11
Half-pulley assy., driving 25 KM/H
CM110303
$102,60 Unit Price incl. VAT
12
Fixed driving half pulley
479561
$12,19 Unit Price incl. VAT
13
V-belt
82712R
Not Available
13
Belt
480852
$13,25 Unit Price incl. VAT
14
Elastic spring
830212
$0,82 Unit Price incl. VAT
15
Pulley disk
480410
Not Available
16
Toothed bushing
479866
Not Available
17
Flanged nut M10x1,25
289519
$0,56 Unit Price incl. VAT
18
Pinion starter
483537
$8,63 Unit Price incl. VAT
19
Spacer 25 KM/H
CM100608
$3,65 Unit Price incl. VAT
19
Spacer
CM100609
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
