1
Engine displacement
125
2
Model
GTS
3
Year
2020
4
Trim
GTS 125 Super 4T Euro 5 ABS
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
Frame/bodywork
by
Front shield
Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
17
18
19
1
Guidon avec pièces internes
1B008502
Not Available
2
Hex socket screw
668874
$2,95 Unit Price incl. VAT
3
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
4
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
6
Manchon commande accélérateur complet
CM087738
Not Available
7
Grip, r.h.
CM083802
$21,87 Unit Price incl. VAT
8
Grip, l.h.
CM083801
$21,87 Unit Price incl. VAT
9
Anti vib.weight trailing
673243
$24,38 Unit Price incl. VAT
10
Countersunk head torx srew
1B006376
$0,59 Unit Price incl. VAT
11
Spring
657046
$3,65 Unit Price incl. VAT
12
Pompe frein arrière
CM295603
$209,80 Unit Price incl. VAT
13
Brake lever
497042
$18,36 Unit Price incl. VAT
14
Maître-cylindre de frein hydraulique avant
CM295304
$115,28 Unit Price incl. VAT
15
Brake lever
497042
$18,36 Unit Price incl. VAT
16
kit purge du système de freinage
1R000467
$25,50 Unit Price incl. VAT
17
Gasket
006731
$0,34 Unit Price incl. VAT
18
Rondelle 10x14x1,6*
AP8113004
$0,34 Unit Price incl. VAT
19
Bleeder raccord
AP8133945
$13,78 Unit Price incl. VAT

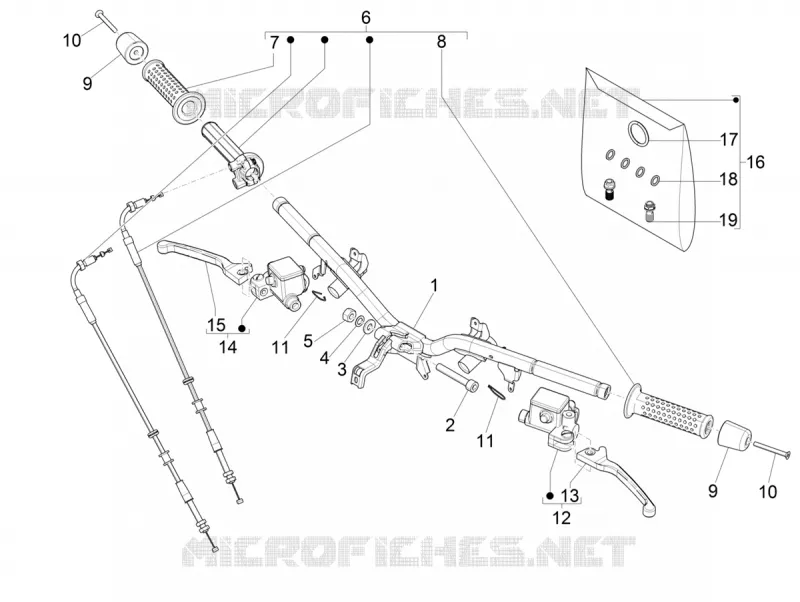

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
