Driven pulley for GILERA PIAGGIO VESPA Medley 125 Euro 5 ABS from 2022

Driven pulley

1

Poulie entraînée avec embrayage

CM288402

$157,64 Unit Price incl. VAT

2

Fixed driven half pulley

1A007072

$37,82 Unit Price incl. VAT

3

Roller cage 20x29x18

82518R

$12,62 Unit Price incl. VAT

4

Snap ring

006628

$0,34 Unit Price incl. VAT

5

Radial ball bearing

1A002689

$9,57 Unit Price incl. VAT

6

Pin

B014466

$1,43 Unit Price incl. VAT

7

Roller

431091

$0,67 Unit Price incl. VAT

8

Adjustable pulley, half

1A003430

$23,11 Unit Price incl. VAT

9

Gasket ring

289950

$9,17 Unit Price incl. VAT

10

Gasket

289840

$1,26 Unit Price incl. VAT

11

Pulley side cap

1A002035

$3,63 Unit Price incl. VAT

12

Plastic washer

1A002038

$1,32 Unit Price incl. VAT

13

Spring seat

1A002036

$2,09 Unit Price incl. VAT

14

Variator spring

1A003435

$7,86 Unit Price incl. VAT

15

Clutch side cap

1A002037

$1,92 Unit Price incl. VAT

16

Groupe d'embrayage centrifuge complet

CM288502

$89,77 Unit Price incl. VAT

17

Ring nut

289955

$8,58 Unit Price incl. VAT

18

Tambour d'embrayage compl.

1A010971

$26,13 Unit Price incl. VAT

19

Flat washer 22x12,1x1

274246

$0,34 Unit Price incl. VAT

20

Nut

B016992

$0,50 Unit Price incl. VAT

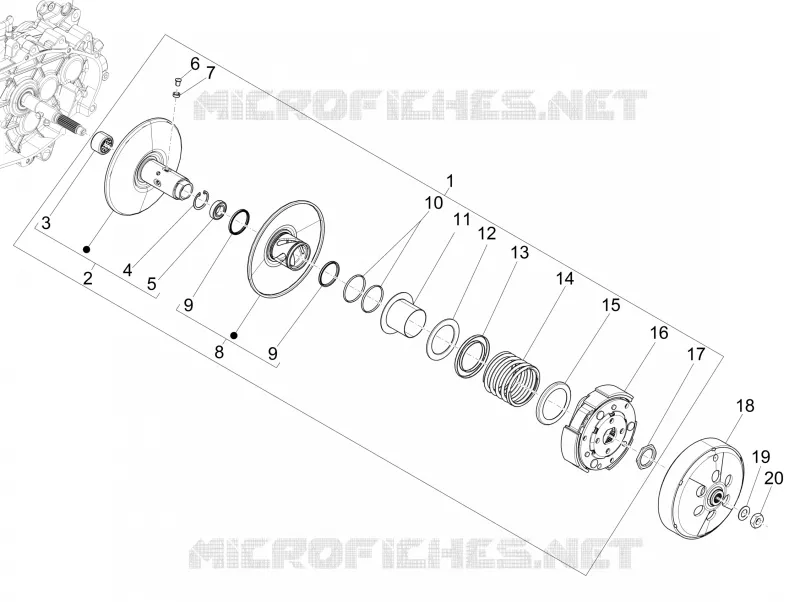

Find the detailed Driven pulley GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
