Handlebars - Master cil. for GILERA PIAGGIO VESPA Medley 125 Euro 5 ABS from 2022

Handlebars - Master cil.

1

Guidon avec pièces internes

1B006313

$75,61 Unit Price incl. VAT

2

Hex socket screw

655554

$3,70 Unit Price incl. VAT

3

Flat washer 18x10,2x2,5

267917

$0,50 Unit Price incl. VAT

4

Flat elastic washer with internal toothing 17x10,3x2

012543

$0,08 Unit Price incl. VAT

5

Nut M10

015330

$0,25 Unit Price incl. VAT

6

Manchon commande accélérateur complet

1C004592

$81,68 Unit Price incl. VAT

7

Grip, r.h.

CM084202

$7,02 Unit Price incl. VAT

8

Grip, l.h.

CM084201

$7,02 Unit Price incl. VAT

9

Borne

1B002616

$3,74 Unit Price incl. VAT

10

screw

576836

$3,03 Unit Price incl. VAT

11

Pompe frein arrière

CM295603

$209,80 Unit Price incl. VAT

12

Brake lever

497042

$18,36 Unit Price incl. VAT

13

Maître-cylindre de frein hydraulique avant

CM295304

$115,28 Unit Price incl. VAT

14

Brake lever

497042

$18,36 Unit Price incl. VAT

15

stop Button

642032

$22,15 Unit Price incl. VAT

16

Fascetta con p.i.

1C001963

$0,99 Unit Price incl. VAT

17

Screw w/ flange M6x14

874554

$0,25 Unit Price incl. VAT

18

Spring washer 6,4x11x0,5

006966

$0,08 Unit Price incl. VAT

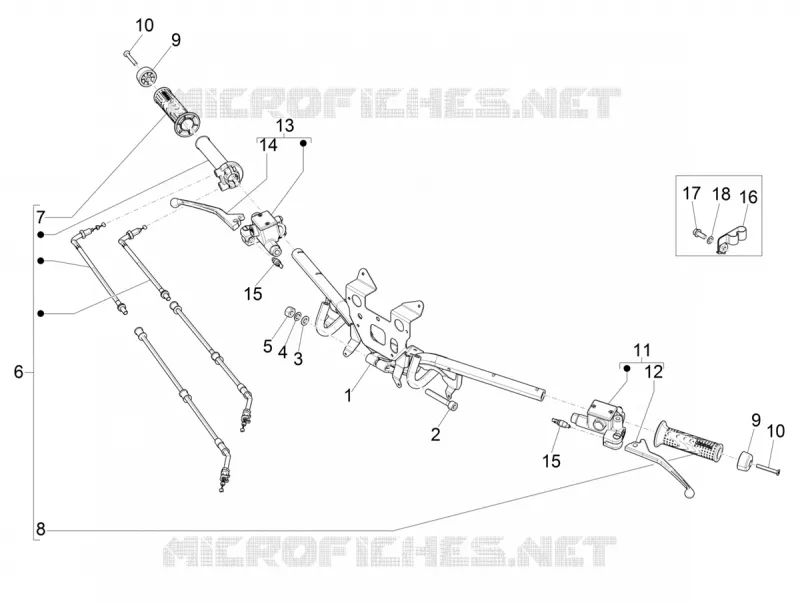

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
