MAIN WIRING HARNESS for GILERA PIAGGIO VESPA Medley 125 Euro 5 ABS from 2022

MAIN WIRING HARNESS

1

Faisceau de câbles du cadre

1D002740

$535,08 Unit Price incl. VAT

2

Fuse 40A

640394

$0,19 Unit Price incl. VAT

3

Cover

290404

$0,42 Unit Price incl. VAT

4

Mini fuse 5A

CM080904

$1,09 Unit Price incl. VAT

5

Mini fuse 7,5A

CM080905

$0,25 Unit Price incl. VAT

6

Mini fuse 10A

CM080906

$1,09 Unit Price incl. VAT

7

Mini-fusible 25A

CM080909

$0,65 Unit Price incl. VAT

8

Plugs spring

641599

$4,82 Unit Price incl. VAT

9

Plugs spring

1D000129

$1,42 Unit Price incl. VAT

10

Wiring clip

1D001143

$0,34 Unit Price incl. VAT

11

Fuse 15A

290860

$5,73 Unit Price incl. VAT

12

Support câblage

1D001287

$1,15 Unit Price incl. VAT

13

screw

CM179202

$0,25 Unit Price incl. VAT

14

Lock-strap L=180mm

145298

$0,08 Unit Price incl. VAT

15

Ambient temperature sensor

581142

Not Available

16

Earth braid

581309

$3,49 Unit Price incl. VAT

17

Tri/lobed hexagonal self-tapping screw

641204

$0,34 Unit Price incl. VAT

18

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

19

Flat washer 6,4x12x1

003056

$0,08 Unit Price incl. VAT

20

screw M6x35

1A000348

$2,25 Unit Price incl. VAT

21

Plugs spring

641599

$4,82 Unit Price incl. VAT

22

Sheet edge spring

CM013203

$0,67 Unit Price incl. VAT

23

Couvercle

1D002384

$2,01 Unit Price incl. VAT

24

Microrelay with resistance 12V 30A/10A

1D001636

$6,14 Unit Price incl. VAT

25

BRIDE DE DISPOSITIFS ÉLECTRIQUES

1B006816

$3,06 Unit Price incl. VAT

26

Screw w/ flange

484123

$0,16 Unit Price incl. VAT

27

Spring plate M5

248419

$0,67 Unit Price incl. VAT

28

Molletta

B005629

$0,84 Unit Price incl. VAT

29

Spring for connector

639560

$0,67 Unit Price incl. VAT

30

Plugs spring

1D000129

$1,42 Unit Price incl. VAT

31

Non return spring L=23

CM006908

$0,50 Unit Price incl. VAT

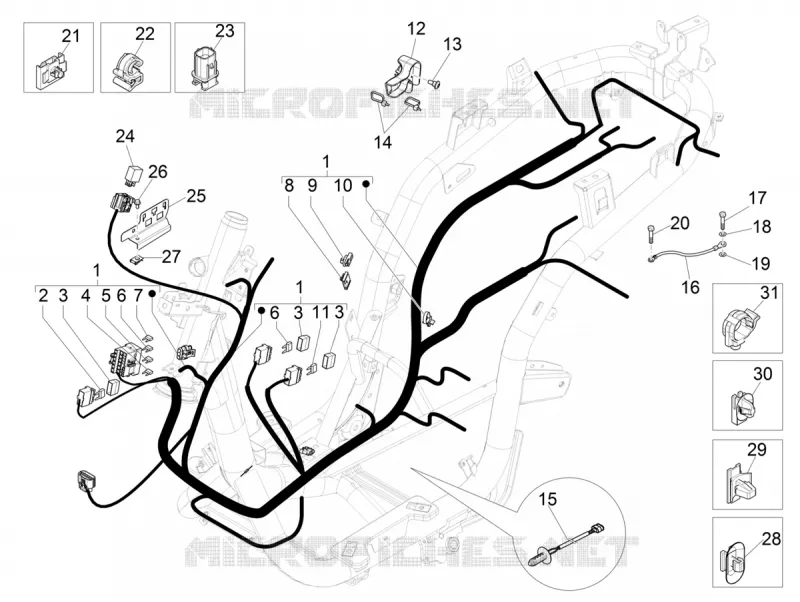

Find the detailed MAIN WIRING HARNESS GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
