REAR WHEEL for GILERA PIAGGIO VESPA GTS 125 4T Euro 4 ABS from 2019

REAR WHEEL

1

Rear wheel 3.00x12"

1C001040

$170,10 Unit Price incl. VAT

1

Roue arrière 3.00 x 12"

1C003844

$195,95 Unit Price incl. VAT

2

Tubeless valve

597679

$3,03 Unit Price incl. VAT

3

(Michelin) Tyre 130/70-12"

1C000743

Not Available

3

Tyre (Sava) 130/70-12"

598278

$163,68 Unit Price incl. VAT

4

Rear wheel hub

598715

$88,52 Unit Price incl. VAT

5

Brake disc

56484R

$35,10 Unit Price incl. VAT

6

screw

597564

$0,50 Unit Price incl. VAT

7

Self locking nut

597565

$0,50 Unit Price incl. VAT

8

Hex socket screw M8x40

149104

$0,51 Unit Price incl. VAT

9

Spring washer

709047

$0,08 Unit Price incl. VAT

10

Flat washer 8,2x17x2,5

828961

$0,28 Unit Price incl. VAT

11

Rear wheel spacer

1C002344

$18,12 Unit Price incl. VAT

12

Spacer

1C002175

$9,41 Unit Price incl. VAT

13

Nut M16x13

563728

$1,42 Unit Price incl. VAT

14

Nut hold cap

194423

$0,48 Unit Price incl. VAT

15

Split pin

012789

$0,16 Unit Price incl. VAT

16

Roue phonique arrière ABS

1C003698R

$19,71 Unit Price incl. VAT

17

Hex socket screw M6x20

667152

$0,26 Unit Price incl. VAT

18

Spacer

1C001044

$2,95 Unit Price incl. VAT

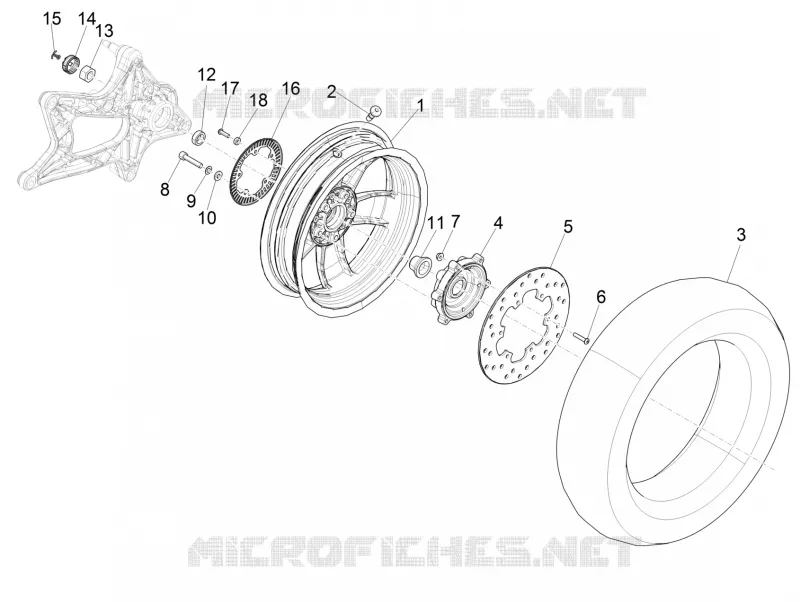

Find the detailed REAR WHEEL GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
