1
Engine displacement
125
2
Model
GTS
3
Year
2019
4
Trim
GTS 125 4T Euro 4 ABS
5
Parts Catalog
WATERPUMP
6
Parts Diagram
Parts Catalog
Air filter
by
Swinging arm
WATERPUMP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
1
Water pump casing
1A0013355
Not Available
2
Water pump rod with U.P.
1A0030735
$22,88 Unit Price incl. VAT
3
Gasket ring 8x16x7
825577
$3,60 Unit Price incl. VAT
4
O-Ring seal ring
1A001054
$6,41 Unit Price incl. VAT
5
Oil seal
82510R
$4,13 Unit Price incl. VAT
6
Rotor
1A002316
Not Available
7
Water pump cover
1A001221
$10,68 Unit Price incl. VAT
8
Torx Screw M5x20
1A004456
$2,20 Unit Price incl. VAT
9
Screw w/ flange M6x22
1A004451
$2,20 Unit Price incl. VAT
10
Flat washer
1A004280
$0,11 Unit Price incl. VAT
11
O-ring
1A001276
$2,55 Unit Price incl. VAT
12
screw M6x35
1A000348
$2,25 Unit Price incl. VAT
13
Support clamp
1A0055625
$1,48 Unit Price incl. VAT
14
O-Ring seal ring
1A001055
$0,17 Unit Price incl. VAT
15
O-Ring seal ring
1A001056
$0,17 Unit Price incl. VAT
16
Blow-by pipe
1A0082585
Not Available
17
Check valve
1A004008
$9,64 Unit Price incl. VAT
18
Hose clamp
CM001903
$0,84 Unit Price incl. VAT
19
Hose clamp
CM001901
$0,76 Unit Price incl. VAT
20
Hose clamp
CM001903
$0,84 Unit Price incl. VAT

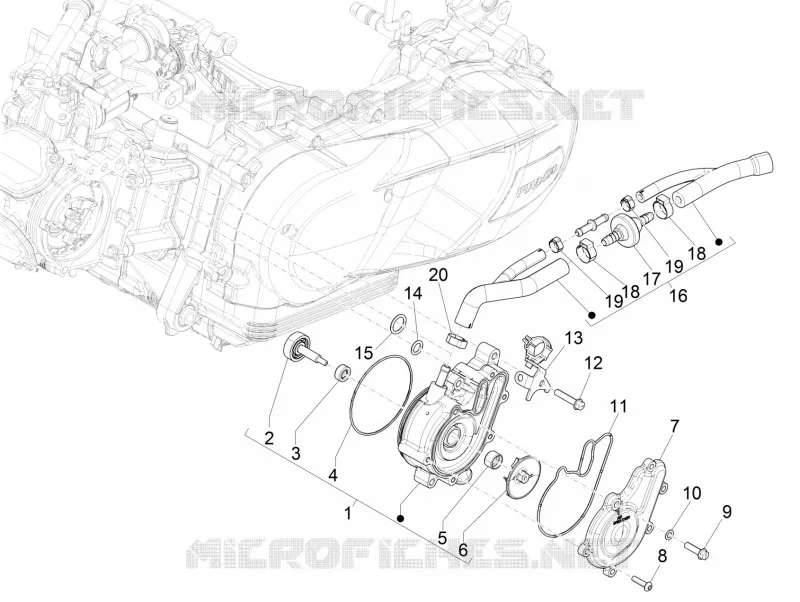

Find the detailed WATERPUMP GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
