Engine displacement
125
2
Model
MEDLEY
3
Year
2020
4
Trim
Medley 125 4T ie ABS Euro 4
5
Parts Catalog
CASING
6
Parts Diagram
Parts Catalog
ENGINE ASSEMPLY
by
Side cover - Spoiler
CASING
1
1
2
2
3
3
4
5
5
6
7
8
9
9
10
11
12
13
14
14
15
16
17
18
19
20
21
21
22
23
24
25
26
26
27
27
28
29
1
Carter complet 1e cat.
CM30740101
$483,01 Unit Price incl. VAT
1
Carter complet 2e cat.
CM30740102
$486,85 Unit Price incl. VAT
2
Stud bolt
1A001860
$1,21 Unit Price incl. VAT
3
O-ring
273754
$0,16 Unit Price incl. VAT
4
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
5
Radial bearing 15x42x13
83026R
$4,46 Unit Price incl. VAT
6
Locating dowel
B015957
$0,59 Unit Price incl. VAT
7
Circlip 25x26,9x1,2
B015959
$0,34 Unit Price incl. VAT
8
Radial bearing 20x50x14
83027R
$9,16 Unit Price incl. VAT
9
Gasket ring 20.35.7
1A005746
$9,08 Unit Price incl. VAT
10
Gasket ring 24.35.7
1A005745
$8,53 Unit Price incl. VAT
11
Stud bolt
1A001860
$1,21 Unit Price incl. VAT
12
Locating dowel
484993
$0,16 Unit Price incl. VAT
13
Calibrated nozzle
1A001364
$1,54 Unit Price incl. VAT
14
Silent-block moteur
1A008919R
$8,32 Unit Price incl. VAT
15
Piston cooling jet
1A002024
$4,60 Unit Price incl. VAT
16
Screw
1A005607
$3,11 Unit Price incl. VAT
17
Oil bulhead
B014134
$4,12 Unit Price incl. VAT
18
Oil pressure adjusting valve
B015432
$2,61 Unit Price incl. VAT
19
Valve spring
B015431
$0,50 Unit Price incl. VAT
20
Upper oil bulkhead
B014135
$2,02 Unit Price incl. VAT
21
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
22
Half crankcase gasket
1A001115
$1,45 Unit Price incl. VAT
23
Screw w/ flange M6x60
B016425
$1,01 Unit Price incl. VAT
24
Filter door insert
B015430
$3,87 Unit Price incl. VAT
25
Gasket
431065
$0,42 Unit Price incl. VAT
26
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
27
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT
28
Convoyeur air
1A014697
$6,84 Unit Price incl. VAT
29
Torx Screw M5x20
B016808
$0,20 Unit Price incl. VAT

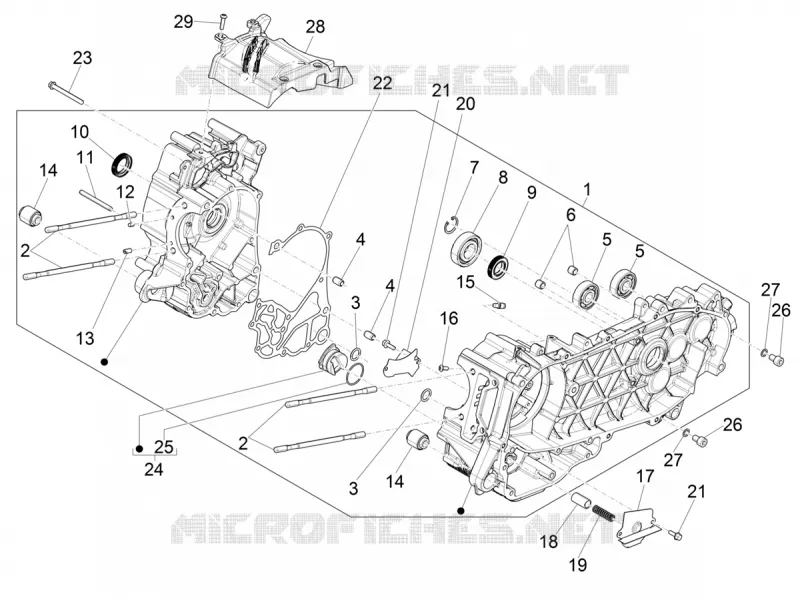

Find the detailed CASING GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
