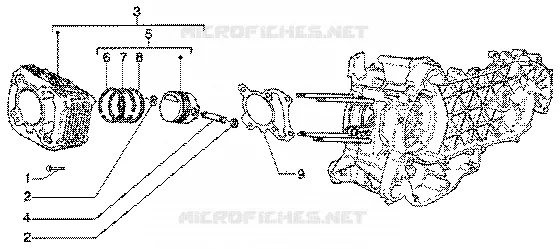

Cylinder-piston-wrist pin, assy
1
2
3
3
4
5
6
7
8
9
1
Screw w/ flange
485603
$0,68 Unit Price incl. VAT
2
Snap ring
963486
$0,05 Unit Price incl. VAT
3
Cylinder assembly-piston-pin (Cast-iron)
831975
$140,02 Unit Price incl. VAT
3
Cylinder assembly-piston-pin (Aluminium)
827113
Not Available
4
Piston pin
482335
$4,92 Unit Price incl. VAT
5
Pist.-wrist pin assy.
831979
Not Available
5
Pist.-wrist pin assy.
827108
Not Available
5
Pist.-wrist pin assy.
827106
Not Available
5
Pist.-wrist pin assy.
827107
Not Available
5
Pist.-wrist pin assy.
82593R
Not Available
5
Complete piston (Aluminium) Cat.D
8271120004
$51,88 Unit Price incl. VAT
5
Pist.-wrist pin assy.
831980
Not Available
5
Pist.-wrist pin assy.
831981
Not Available
5
Complete piston (Aluminium) Cat.B
8271120002
$48,37 Unit Price incl. VAT
5
Complete piston (Aluminium) Cat.C
8271120003
$48,37 Unit Price incl. VAT
5
Complete piston (Aluminium) Cat.A
8271120001
$48,37 Unit Price incl. VAT
6
Gasket ring
487994
Not Available
6
Gasket ring
487998
Not Available
6
Gasket ring
485958
Not Available
6
Gasket ring
488002
Not Available
6
Compression ring d.57x1
485619
Not Available
7
Oil scraper ring d.57x1
434415
Not Available
7
Scraper ring
487999
Not Available
7
Gasket ring
478308
Not Available
7
Scraper ring
487995
Not Available
7
Scraper ring
488003
$7,61 Unit Price incl. VAT
8
Oil scraper ring d.57x2,5
485934
Not Available
8
Scraper ring
485959
Not Available
8
PANEL
4883045
Not Available
8
Oil scraper ring
825029
$14,34 Unit Price incl. VAT
8
Oil scraper ring
487996
$14,34 Unit Price incl. VAT
9
Gasket
485520
$4,82 Unit Price incl. VAT
9
Gasket
485580
$11,77 Unit Price incl. VAT
9
Cylinder base gasket 0,8 mm
828148
Not Available
9
Gasket
485579
$9,36 Unit Price incl. VAT
9
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
9
Cylinder base gasket 0,4 mm
828146
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
