Engine displacement
125
2
Model
ET4
3
Year
0
4
Trim
ET4 125 Leader
5
Parts Catalog
Central stand-swinging arm
6

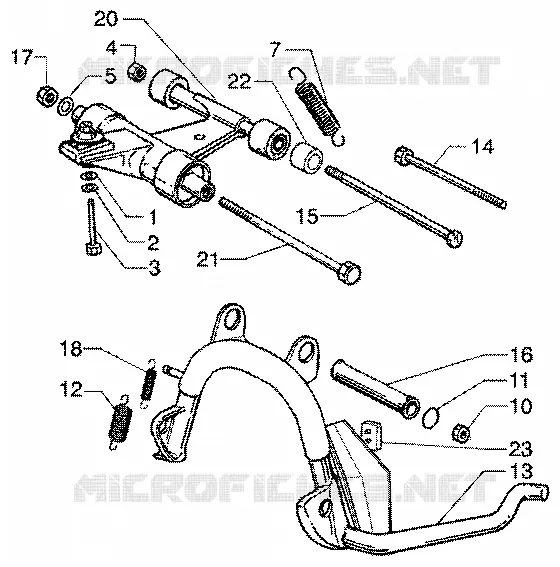

Parts Diagram
Parts Catalog
Catalytic
by
Footrest-rubber mats
Central stand-swinging arm
1
2
3
4
5
7
10
11
12
13
14
15
16
17
18
20
21
22
23
1
Washer
122781
$3,65 Unit Price incl. VAT
2
Washer 17,6x11x2,5
016410
$1,55 Unit Price incl. VAT
3
Hex socket screw M10x80
560045
$1,43 Unit Price incl. VAT
4
Self locking nut M10
232108
Not Available
5
Washer
709037
$2,25 Unit Price incl. VAT
7
Spring
564223
$4,82 Unit Price incl. VAT
10
Self locking nut M10
232108
Not Available
11
O-ring
273754
$0,16 Unit Price incl. VAT
12
Spring
581249
$2,44 Unit Price incl. VAT
13
Central stand
582151
Not Available
14
Hex screw M10x130
030115
$1,85 Unit Price incl. VAT
15
Hex socket screw M10x215
271779
$2,11 Unit Price incl. VAT
16
Spacer
582298
$3,27 Unit Price incl. VAT
17
Nut m12x1,25 h=12,5
261319
$3,65 Unit Price incl. VAT
18
Spring
581248
$2,01 Unit Price incl. VAT
20
Swinging arm
562605
Not Available
21
Bolt
560565
$30,28 Unit Price incl. VAT
22
Spacer
562310
$3,65 Unit Price incl. VAT
23
Stand end stop
600351
$5,53 Unit Price incl. VAT
23
Pad
563984
$5,62 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
