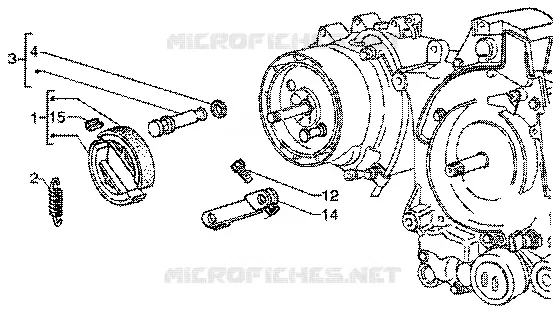

Brake lever
1
2
3
4
12
14
15
1
Pair of brake shoes
2736235
Not Available
2
Brake shoes return spring
266725
Not Available
3
Brake lever shaft
564136
Not Available
4
Gasket
564134
$0,15 Unit Price incl. VAT
12
Screw w/ flange M6x30
289731
Not Available
14
Rear brake lever
833428
$6,42 Unit Price incl. VAT
14
Rear brake control lever
564215
$7,89 Unit Price incl. VAT
15
Plate
266724
$18,39 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
