1
Engine displacement
200
2
Model
GRANTURISMO
3
Year
2003
4
Trim
Granturismo L
5
Parts Catalog
Electrical device-electric horn
6
Parts Diagram
Parts Catalog
Front lights-rear lights
by
Electrical device-speedometers kms.

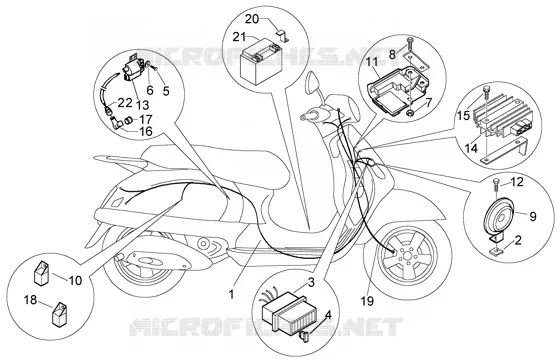

Electrical device-electric horn
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Cable harness
584657
Not Available
1
Cable harness
583676
Not Available
2
Spring plate M6
254485
$0,34 Unit Price incl. VAT
3
Fuse holder
580653
$35,69 Unit Price incl. VAT
4
Fuse 7,5A
252945
$0,42 Unit Price incl. VAT
4
Reed fuse 5a
293256
$0,42 Unit Price incl. VAT
4
Reed fuse 10A
292507
$0,42 Unit Price incl. VAT
5
screw M5x21
015856
$0,16 Unit Price incl. VAT
6
Washer
012528
$0,34 Unit Price incl. VAT
7
Nut
969224
$0,42 Unit Price incl. VAT
8
Screw M6x16
272836
$3,70 Unit Price incl. VAT
9
Horn
CM071806
Not Available
10
Rem. control switch
584319
Not Available
10
Rem. control switch 12V-80A
584521
Not Available
11
Electronic control unit
58054R
$330,71 Unit Price incl. VAT
11
Electronic control unit
830480
Not Available
12
Screw w/ flange M6x16
434541
$0,09 Unit Price incl. VAT
13
HT coil+cable
829337
Not Available
14
Voltage regulator
486062
Not Available
14
Voltage regulator
82501R
Not Available
15
Hex screw M6x22
031091
$0,17 Unit Price incl. VAT
16
Screened cap
969348
$8,17 Unit Price incl. VAT
17
Spark plug prot.collar
828210
Not Available
18
Rem. control switch 12v-30a
583684
Not Available
19
Speedometer transmission
599350
Not Available
20
Battery bracket
620453
Not Available
20
Battery bracket
621830
Not Available
21
Battery Yuasa 12V-12Ah (133x85x145)
584867
$203,30 Unit Price incl. VAT
21
Battery
580139
Not Available
22
Cap
255473
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
