1
Engine displacement
200
2
Model
GRANTURISMO
3
Year
2003
4
Trim
Granturismo L
5
Parts Catalog

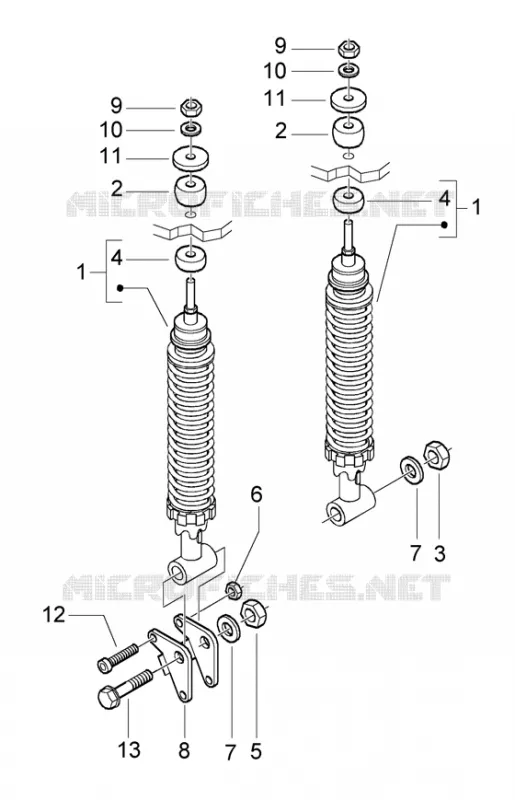

Rear dampers
6
Parts Diagram
Parts Catalog
Steering column-disc brake
by
Handlebar covers
Rear dampers
1
1
2
2
3
4
4
5
6
7
7
8
9
9
10
10
11
11
12
13
1
Complete rear shock absorber
56234R
Not Available
1
Shock absorber
597796
Not Available
2
Upper buffer
178150
$0,92 Unit Price incl. VAT
3
Self locking nut M10
232108
Not Available
4
Lower buffer
178149
$1,41 Unit Price incl. VAT
5
Self locking nut M10
232108
Not Available
6
Nut M8
020008
$0,08 Unit Price incl. VAT
7
Washer
016627
Not Available
8
plate
598143
$5,38 Unit Price incl. VAT
9
Nut M8
021108
$0,25 Unit Price incl. VAT
10
Flat washer
267038
$0,67 Unit Price incl. VAT
11
Flat washer
267038
$0,67 Unit Price incl. VAT
12
Screw m8x50
432334
$3,65 Unit Price incl. VAT
12
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
13
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
