1
Engine displacement
50
2
Model
ET2
3
Year
0
4
Trim
ET2 50
5
Parts Catalog
Handlebars component parts
6
Parts Diagram
Parts Catalog
speedometers kms.-handlebar covers
by

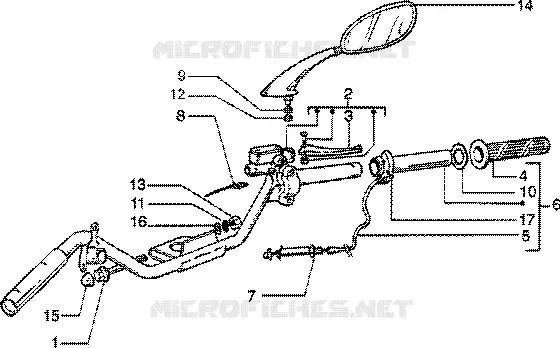

Handlebars component parts
Handlebars component parts
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
Driving mirror
581554
$21,87 Unit Price incl. VAT
1
Driving mirror
563866
$183,60 Unit Price incl. VAT
2
Ring
562401
Not Available
3
Spring
267948
$4,89 Unit Price incl. VAT
4
Screw with nut
265249
$3,70 Unit Price incl. VAT
5
Grip
560580
$7,70 Unit Price incl. VAT
6
Lever
564642
Not Available
7
stop Button
580953
$6,23 Unit Price incl. VAT
8
Hose
564641
$36,45 Unit Price incl. VAT
9
Handlebar
5817164
Not Available
10
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
11
Self-tap screw M3x20
258146
$0,25 Unit Price incl. VAT
12
screw
030034
Not Available
13
Nut
440785
$3,65 Unit Price incl. VAT
14
Spacer
562399
$5,38 Unit Price incl. VAT
15
Nut M8
020008
$0,08 Unit Price incl. VAT
16
Ring
005955
$2,95 Unit Price incl. VAT
17
Collar
582828
$4,82 Unit Price incl. VAT

Find the detailed Handlebars component parts GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
