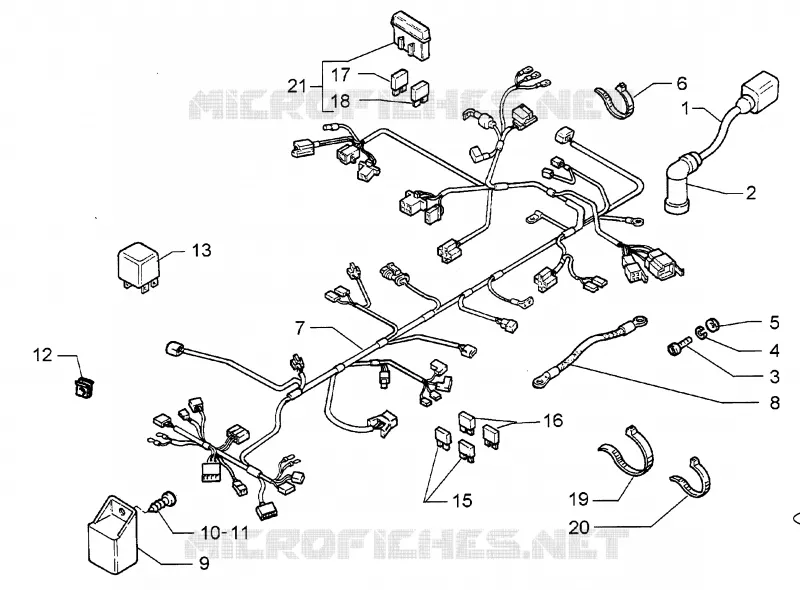

Electrical systems
1
2
3
4
5
6
7
8
9
10
11
12
13
15
16
17
18
19
20
21
1
Coil
495177
Not Available
2
Spark plug cap
495355
Not Available
3
screw M5x21
015856
$0,16 Unit Price incl. VAT
4
Plain washer 5,4x10x0,8
003055
$0,08 Unit Price incl. VAT
5
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
6
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
7
Wire
580549
Not Available
8
CALZA
580555
Not Available
9
Rem. control switch 12V-30A
294076
Not Available
10
Screw M6x16
272836
$3,70 Unit Price incl. VAT
11
screw M6x14
008375
$1,55 Unit Price incl. VAT
12
Spring plate M6
254485
$0,34 Unit Price incl. VAT
13
Unit turn signal lamps
2910162
Not Available
15
Reed fuse 10A
292507
$0,42 Unit Price incl. VAT
16
Fuse 7,5A
252945
$0,42 Unit Price incl. VAT
17
Reed fuse 5a
293256
$0,42 Unit Price incl. VAT
18
Fuse 15A
290860
$5,73 Unit Price incl. VAT
19
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
20
Hose clamp
109960
Not Available
21
Gasket ring
495361
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
