1
Engine displacement
250
2
Model
HEXAGON
3
Year
0
4
Trim
Hexagon GT
5
Parts Catalog

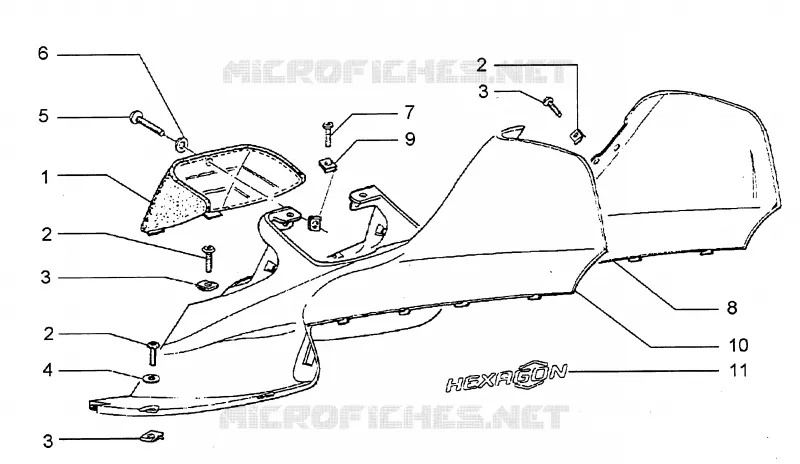

Top fairing
6
Parts Diagram
Parts Catalog
Fairing
by
Front mudguard
Top fairing
1
2
2
2
3
3
3
4
5
6
7
8
9
10
11
1
Door
5618920023
Not Available
1
Door
561892000N
Not Available
2
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Washer
179575
$0,17 Unit Price incl. VAT
5
Self-tap screw
270795
Not Available
6
Washer
270792
Not Available
7
screw 4,2x19
258249
$0,09 Unit Price incl. VAT
8
R.H. BODY SIDE
5750530060
Not Available
8
R.H. BODY SIDE
5750530090
Not Available
8
R.H. BODY SIDE
5750530038
Not Available
8
R.H. BODY SIDE
5750530055
Not Available
8
R.H. BODY SIDE
5750530037
Not Available
8
R.H. BODY SIDE
575053
Not Available
9
Spring plate
184142
Not Available
10
L.H. BODY SIDE
5747100038
Not Available
10
L.H. BODY SIDE
5747100055
Not Available
10
PANEL
574710
Not Available
10
L.H. BODY SIDE
5747100060
Not Available
10
L.H. BODY SIDE
5747100090
Not Available
10
L.H. BODY SIDE
5747100037
Not Available
11
Name plate
573488
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
