Main cable harness for GILERA PIAGGIO VESPA MP3 500 Sport E4 from 2017

Main cable harness

1

WIRING HARNESS

1D0021055

Not Available

1

GRUPPO CAVETTI

1D002125

$573,41 Unit Price incl. VAT

1

GRUPPO CAVETTI

1D002111

$1 446,30 Unit Price incl. VAT

2

FUSIBILE 40A

640394

$0,19 Unit Price incl. VAT

2

FUSIBILE 20 A.

580561

$0,42 Unit Price incl. VAT

2

FUSIBILE 7,5 A

252945

$0,42 Unit Price incl. VAT

2

FUSIBILE **

293256

$0,42 Unit Price incl. VAT

2

FUSIBILE LAMELLARE 15A

290860

$5,73 Unit Price incl. VAT

2

FUSIBILE LAMELLARE 10

292507

$0,42 Unit Price incl. VAT

3

MANCETTA ADESIVA

577594

$0,42 Unit Price incl. VAT

4

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

5

Ambient temperature sensor

581142

Not Available

6

VITE TESTA ESAGON.FLANG. M6X10

969296

$0,16 Unit Price incl. VAT

7

FASCETTA

573918

$1,09 Unit Price incl. VAT

8

VITE AUTOFIL. TBCIC 3,8x16

270793

$0,08 Unit Price incl. VAT

9

RONDELLA PIANA 16x4,2x1

013963

$0,19 Unit Price incl. VAT

10

FASCETTA METALLICA

271477

$3,65 Unit Price incl. VAT

11

FASCETTA A STRAPPO

257134

$0,25 Unit Price incl. VAT

12

Hose clamp

D9004461193

$5,38 Unit Price incl. VAT

13

MOLLETTA RITEGNO TUBI/CAVI

CM013202

$1,10 Unit Price incl. VAT

13

MOLLETTA RITEGNO TUBI

CM013201

$0,40 Unit Price incl. VAT

14

FASCETTA A STRAPPO

257134

$0,25 Unit Price incl. VAT

15

MANCETTA METALLICA

640590

$5,53 Unit Price incl. VAT

16

MOLLA PER CONNETTORE

584520

$5,38 Unit Price incl. VAT

17

VITE TBC M5X10

430264

$2,99 Unit Price incl. VAT

18

FASCETTA

638792

$4,82 Unit Price incl. VAT

19

STAFFA SUPPORTO FASCETTE

642063

$18,75 Unit Price incl. VAT

20

RONDELLA ELASTICA BOMBATA

012528

$0,34 Unit Price incl. VAT

21

VITE AUTOMASC.TESTA ESAG.TRILOBATA

641204

$0,34 Unit Price incl. VAT

22

RONDELLA PIANA 6,4x12x1

003056

$0,08 Unit Price incl. VAT

23

RONDELLA ELASTICA (6,4X11,8X1)

016406

$0,34 Unit Price incl. VAT

24

USB port

1D001377

Not Available

25

Fairlead

643310

$1,02 Unit Price incl. VAT

26

VITE ESAGONALE FLANGIATA M6X16 CL10,9

B016777

$0,16 Unit Price incl. VAT

27

(*)GRUPPO CAVI LUCE TARGA

2D000078

$19,99 Unit Price incl. VAT

28

SUPPORTO CON P.I.

2B000966

$13,53 Unit Price incl. VAT

29

Supporto con P.I.

2B000969

$13,53 Unit Price incl. VAT

30

Staffa

2B000919

$8,16 Unit Price incl. VAT

31

TAPPO PER CONNETTORE SUPER SEAL 3VIE

582928

$1,01 Unit Price incl. VAT

32

MOLLETTA RITEGNO TUBI

CM006903

$1,43 Unit Price incl. VAT

33

STAFFA FISSAGGIO ANTIFURTO CON P.I.

1B004702

$13,25 Unit Price incl. VAT

34

VITE A TESTA BOMBATA ESAGONO INCASSATO

873433

$0,17 Unit Price incl. VAT

35

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

36

GRUPPO CAVETTI DISP. LOCALIZZ.

1D002287

$20,80 Unit Price incl. VAT

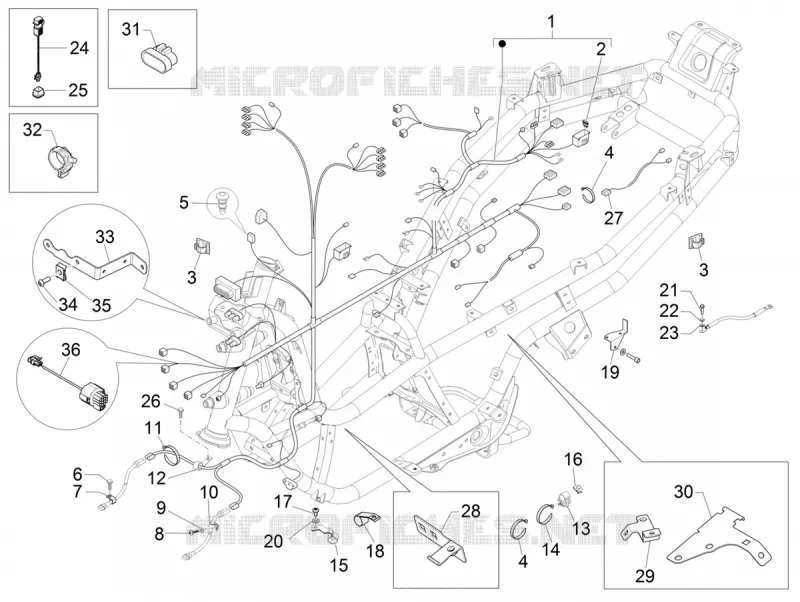

Find the detailed Main cable harness GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
