Saddle/seats for GILERA PIAGGIO VESPA S 4T 3V E3 ie from 2017

Saddle/seats

1

SADDLE, ASSY "VESPA S 3V VIETNAM"

67200200C1

Not Available

1

Complete saddle

5A000133

Not Available

1

Complete saddle

5A000132

Not Available

2

TAMPONE SCONTRO SELLA

296456

$2,77 Unit Price incl. VAT

3

TAMPONE

577492

$4,21 Unit Price incl. VAT

4

FASCETTA SMONTABILE

298729

$0,34 Unit Price incl. VAT

5

PONTICELLO FERMA PERNO

296743

$5,73 Unit Price incl. VAT

6

KIT TRASMISSIONE APERTURA SELLA(RICAMBI)

653994

$47,91 Unit Price incl. VAT

7

VITE TEF M6X14

B016426

$0,42 Unit Price incl. VAT

8

MANIGLIA SELLA CON P.I.

672100

Not Available

9

VITE TE GAMBO INTER.FILETT

031090

$3,65 Unit Price incl. VAT

10

RONDELLA ELASTICA D16 F6,2

078307

$0,17 Unit Price incl. VAT

11

PIASTRINA ELASTICA M6

254485

$0,34 Unit Price incl. VAT

12

ROSETTA ELASTICA PIANA CON DENT.ESTERNA

012533

$0,67 Unit Price incl. VAT

13

COPERCHIO MANIGLIA SELLA

672151

$15,58 Unit Price incl. VAT

14

VITE AUTOFILETTANTE PER MATERIE PLAST.

268596

$0,08 Unit Price incl. VAT

15

BORSA ATTREZZI VESPA LEM

781330

$13,24 Unit Price incl. VAT

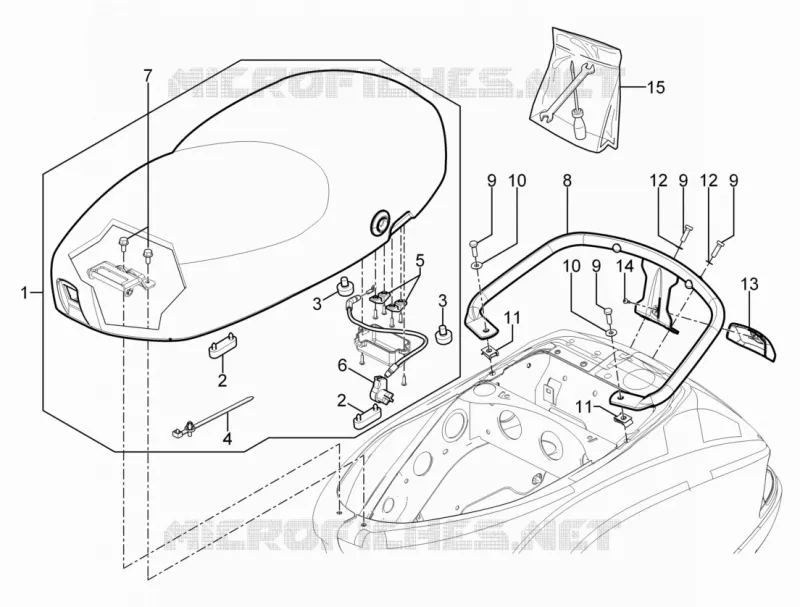

Find the detailed Saddle/seats GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
