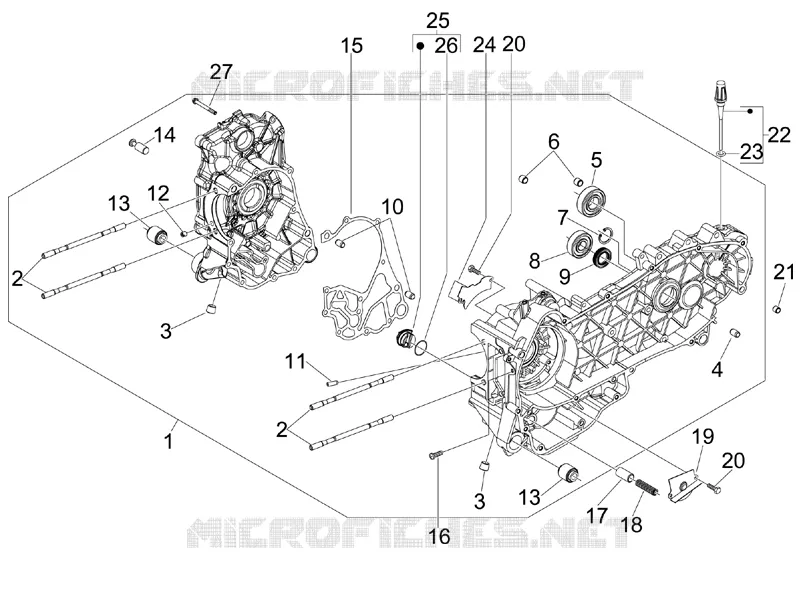

Crankcase
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
1
Crankcase assembly Cat.1
8786935001
Not Available
1
Crankcase assembly Cat.2
8786935002
Not Available
2
Stud bolt
877285
Not Available
3
Plug M12x1,5
411311
$0,67 Unit Price incl. VAT
4
Pin 6,5x9,5x15
239388
Not Available
5
Radial ball bearing 15x42x13
485912
Not Available
6
Locating dowel Ø11x10
478115
$0,24 Unit Price incl. VAT
7
Circlip 25x26.9x1.2
000674
Not Available
8
Radial ball bearing 20x47x14
82990R
Not Available
8
Radial ball bearing 20x47x14
833701
Not Available
9
Gasket ring 20-32-7
82878R
$10,25 Unit Price incl. VAT
10
Pin 6,5x9,5x15
239388
Not Available
11
Nozzle
484034
$6,44 Unit Price incl. VAT
12
Nozzle D 1.1
844582
$0,05 Unit Price incl. VAT
13
Silent-block
486081
$6,73 Unit Price incl. VAT
14
Springs fixing pin
483785
$5,45 Unit Price incl. VAT
15
Gasket
875111
$3,34 Unit Price incl. VAT
16
Screw M5x10
018575
$2,95 Unit Price incl. VAT
17
Oil pressure valve
829661
$6,44 Unit Price incl. VAT
18
Spring
485655
$1,26 Unit Price incl. VAT
19
Lower oil bulkhead
483767
$0,38 Unit Price incl. VAT
20
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
21
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
22
Complete oil level dipstick
832130
$2,94 Unit Price incl. VAT
23
Gasket ring 14,43x9,19x2,62
827085
$2,99 Unit Price incl. VAT
24
Upper oil bulkhead
485047
$0,48 Unit Price incl. VAT
25
Filter door insert
845861
$3,82 Unit Price incl. VAT
26
Gasket
431065
$0,42 Unit Price incl. VAT
27
screw M6x60
432142
$0,19 Unit Price incl. VAT
